TRN 1 Series
£0.00
SKU: TRN 1

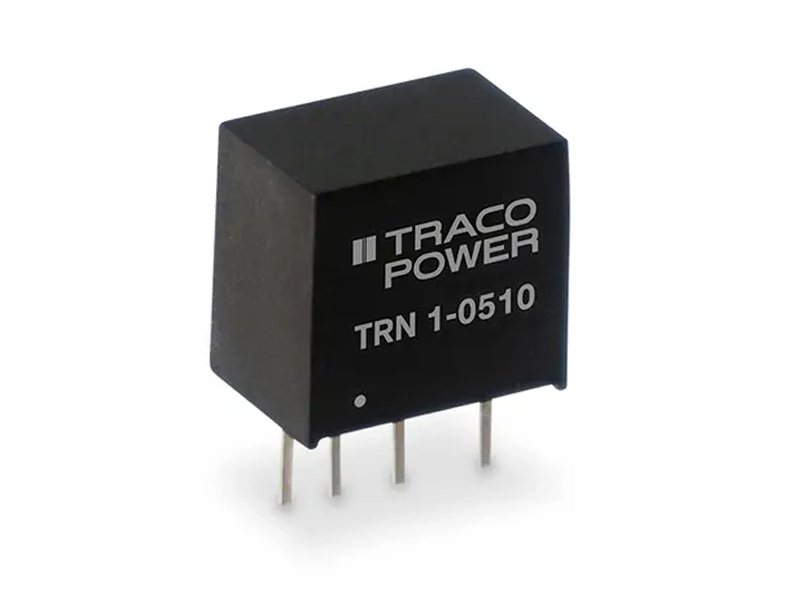

The TRN 1 Series comprises 1 Watt fully regulated, high performance DC/DC
converters. They come in a compact cubical package of only 1.00 cm³. Full
load operation is reliable up tp 90°C environment temperature. With 1’600
VDC I/O isolation voltage, and short current protection they cover a wide range
of application when space is limited. The input of the converters is designed for
a wide voltage range (2:1) and minimum load is not required. The functional I/-
O-isolation system is designed to meet IEC/EN/UL 62368-1 (not certified) with
a test voltage (60 s) of 1600 VDC.
• Compact SIP package 11,9 x 7,7 x 11,0 mm
• Fully regulated outputs

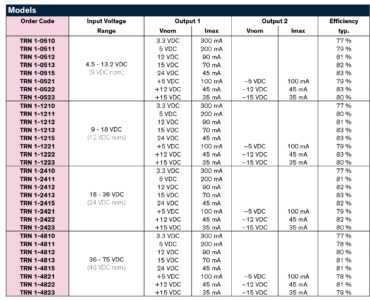

• Input Voltage range 4.5-13.2, 9-18, 18-36, 36-75 VDC
• I/O-isolation 1‘600 VDC
• Operating temperature range –40°C to +90°C without derating
• Short circuit protection
• Designed to meet IEC/EN/UL 62368-1 (not certified)
• 3-year product warranty
