CPS-EP3000 Series
£0.00
SKU: EP3000 Series

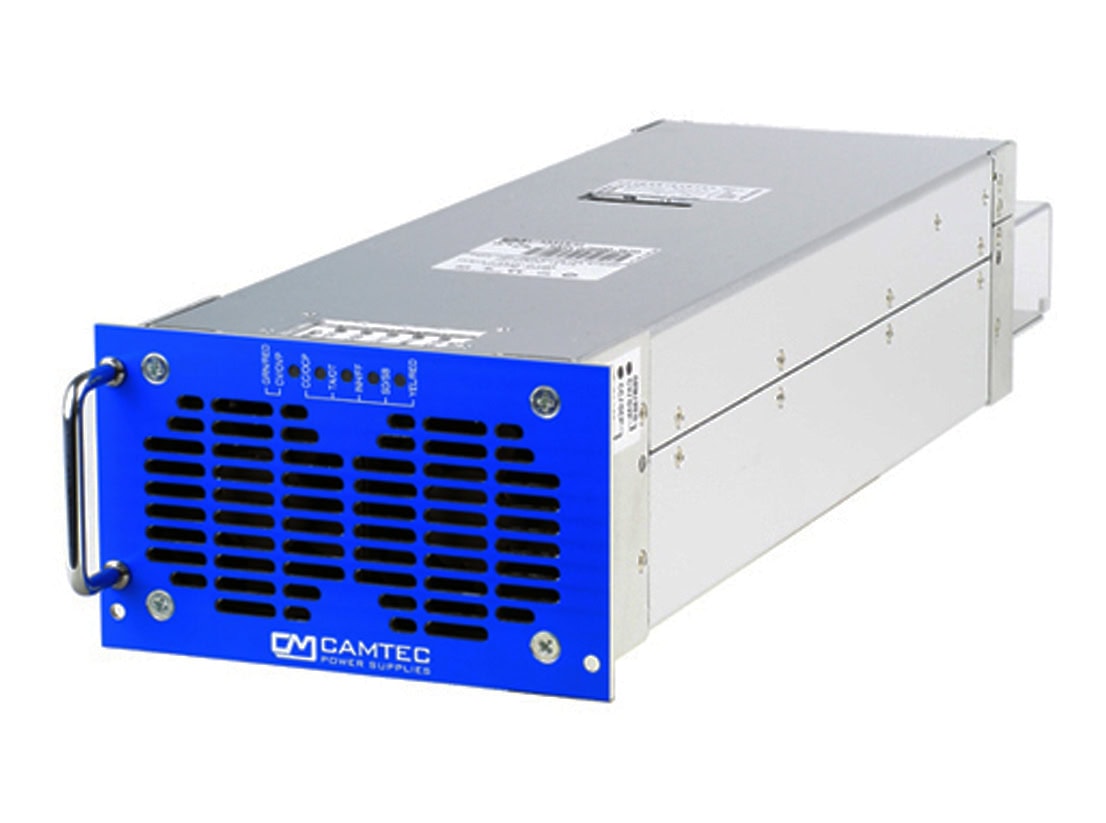

The CPS-EP3000 Series power supply is a 3000W 2U or 3U mounting module that can be fitted into a 19” rack or wall mounted. It is available in 6 different output voltage versions of 12V, 24V, 36V, 48V, 72V, 110V or 220V DC.
- Optional LAN interface plug & play
- 3D Heat Dissipation
- CSB Current Share Bus paralleling 7 units
- Inhibit for safe interlocking
- Remote Shutdown
- Sense mode
- Current Monitoring 0-5V
- Power Good Relay DC-ok
- Precise dynamics on load change
- Series & parallel operation up to 100kW
- EMC conducted class B, radiated class A
- Efficiency 92-94%
- PFC Power factor 0,99
- Variable controlled fans from Papst
- Long lifetime under hard operation
- Solid 2U and 3U subframes available
