CPS-i3000 Series
£0.00
SKU: CPS-i3000 Series

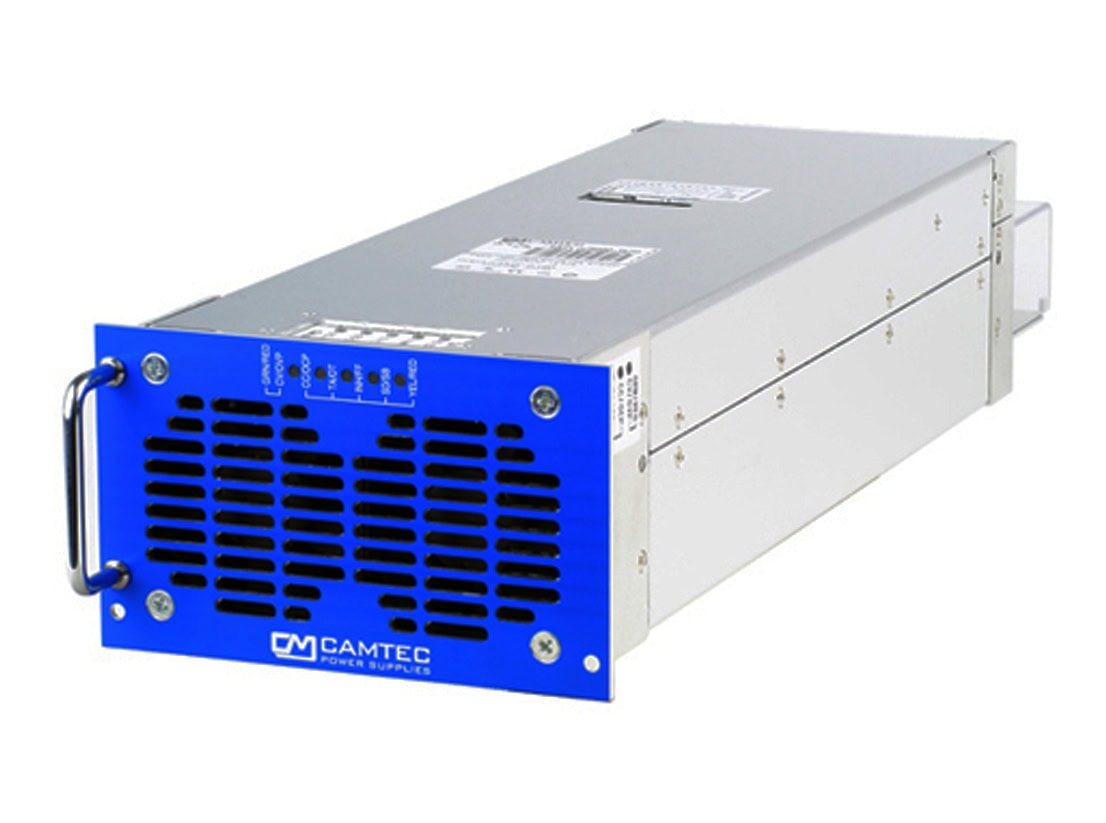

The CPS-i3000 Series power supply is a 3000W 2U or 3U mounting module that can be fitted into a 19” rack or wall mounted. It is available in 6 different output voltage versions of 18V, 30V, 60V, 90V, 150V or 300V DC. Outputs programmable for Voltage and Current 0-100%.
• Optional LAN interface plug & play
• 3D Heat Dissipation
• Real time I/V programming
• Real time I/V-monitoring
• Reference voltage f. autonomous programming
• CSB Current Share Bus paralleling 7 units
• Inhibit for safe interlocking & Remote Shutdown
• Remote Shutdown
• Power Good Relay AC-ok and DC-ok
• Precise dynamics on load change
• Series & parallel operation up to 100kW
• EMC conducted class B, radiated class A
• Efficiency 92-94%
• PFC Powerfactor 0,99
• Variable controlled fans from Papst
• Long lifetime under hard operation
• Fast down programming option PS
• Solid 2U and 3U subframes available
