Up to 24 Watts, Single DC Output

Features

 • Meets Level VI Energy Requirements

• Universal AC Input

• Conforms to RoHS

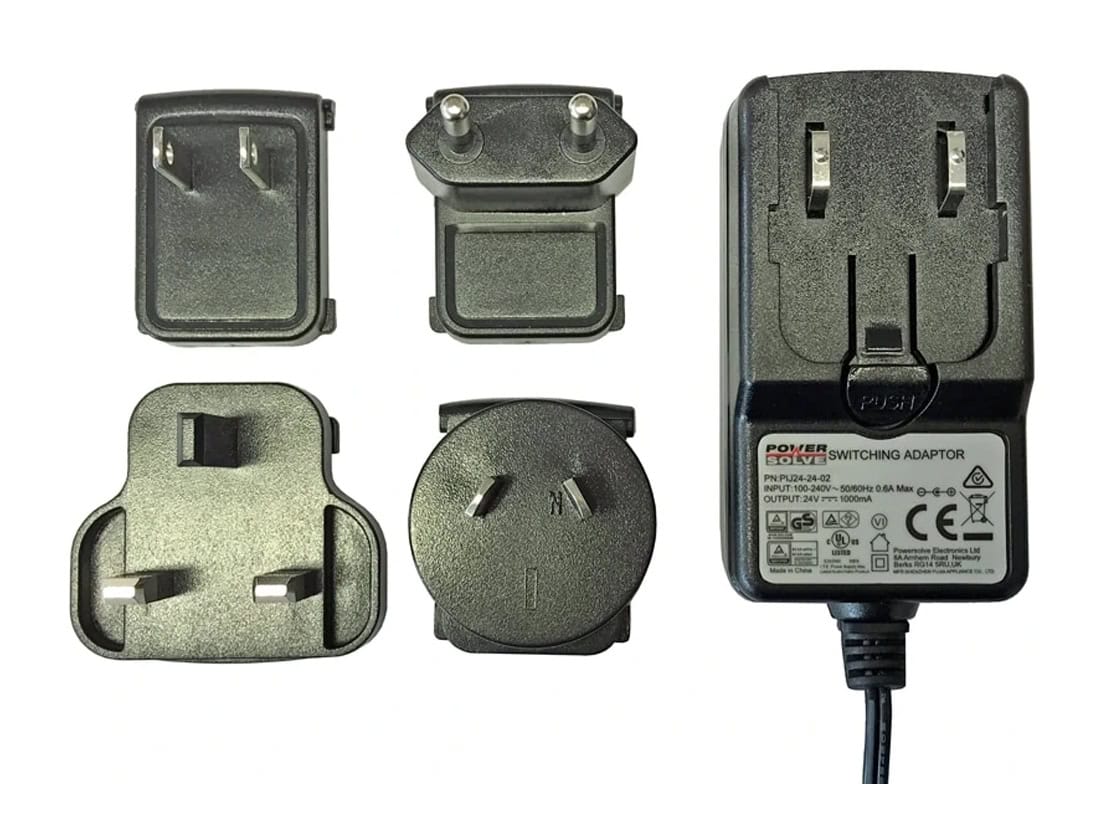

• Interchangeable AC Plugs for USA, EU, UK & Australia

(for others consult sales office)

• EMC to EN55022’B’, CISPR22 ‘B’ & FCC ‘B’

• CE marked and Full Safety Approvals

Electrical Specification

INPUT

Input Voltage & Frequency 90-264VAC, 47-63Hz

Input Current 0.6A max

Safety Ground Leakage Current 0.25mA max

No Load Input Power 0.1W max

OUTPUT

Output Voltage & Current See table

Output Power Up to 24 Watts see table for models

Output Ripple & Noise 100mV 5V output, 1% others

Transient Response Time 4mS max full load to half load 100VAC input

Line Regulation 1% max

Load Regulation ±5% max

Output Protection Overcurrent & short circuit

ENVIRONMENTAL

Operating Temperature 0 to 40ºC, ambient

Storage Temperature -40ºC to +85ºC

Relative Humidity 5-90% max

GENERAL

Efficiency depending on output voltage, ≥81.39-86.2% 25-100% load

MTBF >50,000 hours @ 25ºC calculated to MIL-HDBK-217F

SAFETY

Withstand Voltage Primary to Secondary 3000VAC 5mA/5 sec, Primary to Ground 500V DC

Isolation Resistance 10Mohm Min @ 500VDC

Safety Approvals TUV EN60950, cUL, UL, PSE, C tick

EMI/EMC EN55032-55020-55024 ‘B’

MECHANICAL UL94V-1 plastic enclosure, dimensions see drawings

Output Voltage
