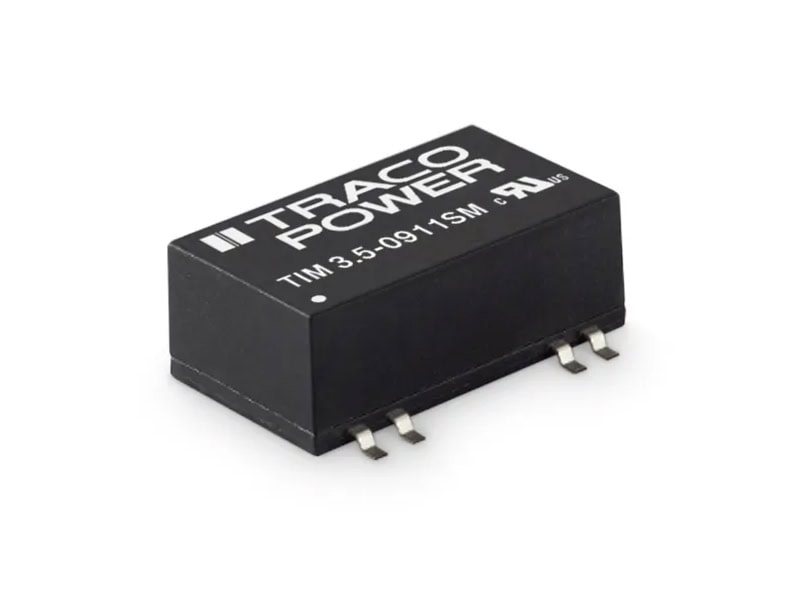

TIM 3.5SM Series
SKU: TIM 3.5SM
3.5 Watts single and dual output, 4:1 input range compact SMD package, isolation of 5000 VACrms for medical applications
The TIM 3.5SM series is a range of 3.5 Watt DC/DC converters in compact SMD package and with reinforced isolation of 5000 VACrms for medical applications.
With a low leakage current of less than 2 μA the converters are predestined to insulate electrical equipment from the applied parts to patient (BF classification).
The models are approved to IEC/EN/ES 60601-1 3rd edition for 2xMOPP up to an altitude of 5000m and come along with an ISO 14971 risk management file.
