TEN30 WI Series
30 Watts single & dual output, 4:1 input range, remote on/off, 40 X 50mm package
The TRACOPOWER TEN 30WI series is a family of high performance 30W dc-dc converters featuring ultra wide 4:1 input voltage ranges in a compact low profile package with industry-standard footprint.
A very high efficiency allows operating temperatures up to 85°C. A built-in filter for both input and output minimizes the need for external filtering. Further standard features include remote On/Off, output voltage trimming, over voltage protection, under voltage lockout and short circuit protection.
Typical applications for these products are battery operated equipment and distributed power architectures in communication and industrial electronics, everywhere where isolated, tightly regulated voltages are required and space is limited on the PCB.

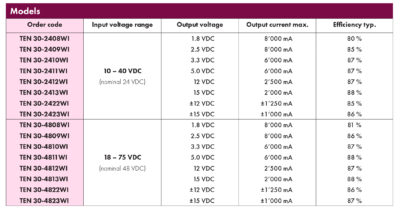

TEN30-2408WI TEN30-2409WI TEN30-2410WI TEN30-2411WI TEN30-2412WI TEN30-2413WI TEN30-2422WI TEN30-2423WI TEN30-4808WI TEN30-4809WI TEN30-4810WI TEN30-4811WI TEN30-4812WI TEN30-4813WI TEN30-4822WI TEN30-4823WI
TEN30WI Series; 30 Watts Ind. Std. 2 x 1.6
