TPC Series
£0.00
SKU: TPC

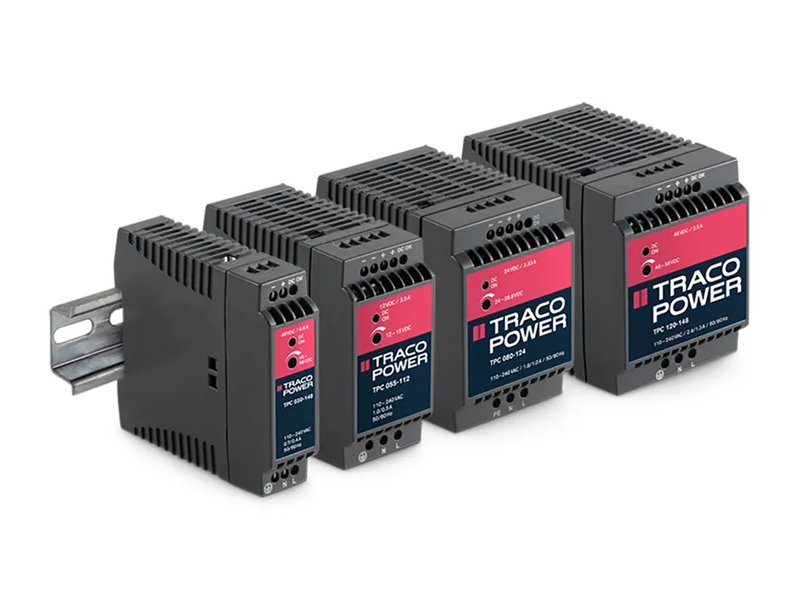

The TPC series is a family of lightweight 20W-120W DIN-rail power supplies with
an excellent price/performance ratio. They consume sparse standby power, and operate with high efficiency to comply with the requirements of the European Eco design directive. They have universal input of 85-264VAC or 90-375VDC and are designed for class I operation in industrial and residential environments. With the optional active current sharing redundancy module, these power supplies provide a very reliable true redundant DC supply. For further details see page 3.
- For industrial, office and residential environments
- Meets European ErP directive (green mode), <0.3 W no load power consumption
- High efficiency across full load range
- Compact plastic casing
- Reliable snap-on mounting on DIN-rails or with wall mounting bracket (not included)
- Universal input 85–264 VAC, 47–63 Hz

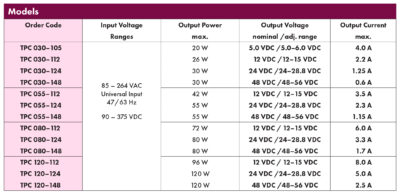

- Models with 5, 12, 24 & 48 VDC output
- Output voltage adjustable
- Power good signal
- Low ripple and noise
- Overload and short-circuit protection
- Optional module for parallel and redundant operation
- Worldwide safety approval package
- 3-year product warranty
