Single, dual, and triple output 65 Watts, 2 x MOPP Medical safety according to AAMI/ANSI ES 60601-1:2005(R) and IEC/EN 60601-1 3rd edition
The TRACO TPP 65 Series of 65 Watt AC/DC power supplies feature a reinforced double I/O isolation system according to latest medical safety standards (60601-3 3rd edition, 2 x MOPP).
The excellent efficiency of up to 93.5% allows a high power density for the standard 2.44” x 3.0” packaging format. The full load operating temperature range is –40°C to +60°C while it goes up to 85°C with 50% load derating (for single output models).
They come with an active power factor correction and the EMC characteristic is dedicated for applications in industrial and domestic fields.
High reliability is provided by use of industrial quality grade components and an excellent thermal management. It makes the products an ideal solution for medical devices and for demanding safety and space critical applications.

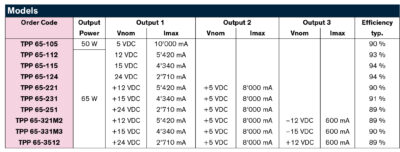

TPP 65-105 TPP 65-112 TPP 65-115 TPP 65-124 TPP 65-221 TPP 65-231 TPP 65-251 TPP 65-321M2 TPP 65-331M3
