TMDC40 Series
£0.00
SKU: TMDC40
The TMDC 40 Series is a range of encapsulated high performance DC/DC
converter modules. With a very high efficiency of up to 92% and the use of
highest reliable components these 40 W converters are avialable as a

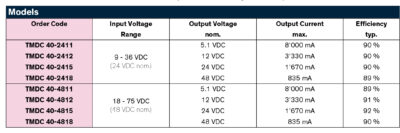

chassis-mount with screw terminlas or PCB versions. The 8 models have a
wide 4:1 input voltage range and a tight output voltage regulation. They do not
need a minimum load and offer a high efficiency also at low load conditions.
They feature a remote control input and a green power good LED which
indicates the presence of the output voltage. Protection against overload and
short circuit are standard features of these converters. EMC characteristics and
safety certifications are aligned for the operation in industrial environment.
• Fully encapsulated low profile plastic case
• Ultra wide 4:1 input voltage range
• Operating temperature range –40°C to +85°C
• I/O isolation 2500 VDC
• Excellent efficiency up to 92 %
• Input filter to meet EN 55022, class A
• Optional DIN-Rail mount adapter
• No minimum load required
• Power good LED indicator and remote on/off function
• 3-year product warranty
