AH Series HV DC-DC
£0.00
SKU: AH Series HV DC-DC

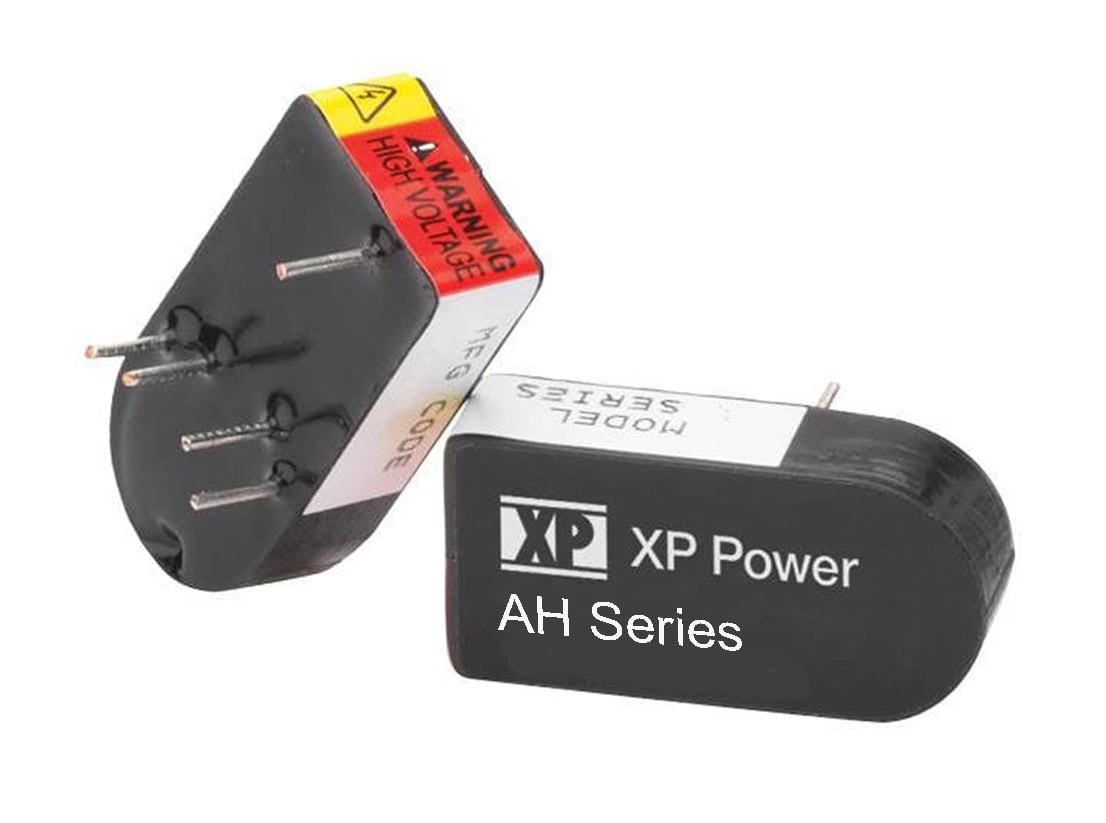

The AH Series is a broad line of ultra-miniature, DC to HV DC converters that set an
industry standard in high voltage miniaturization. This unique package occupies less than
one tenth of a cubic inch of volume, and an extremely low profile of only 0.250 inches (6.35mm).
Controllable output voltages range from 100 volts to 6000 volts. The output is directly
proportional to the input voltage and is linear from <0.7V input to maximum input voltage,
allowing for an adjustable output voltage. Output is load dependent. Isolation permits
<±500V bias on output return. No external components or minimum load are required.
• Output voltages from 100V to 6000V
• Output proportional to input
• 0.7VDC turn-on voltage
• Extremely low profile <0.25”
• Input to output isolation
• Short circuit protection
• Control pin
• No minimum load
• 3 year warranty
