ASB160 Series
£0.00
SKU: ASB160 Series

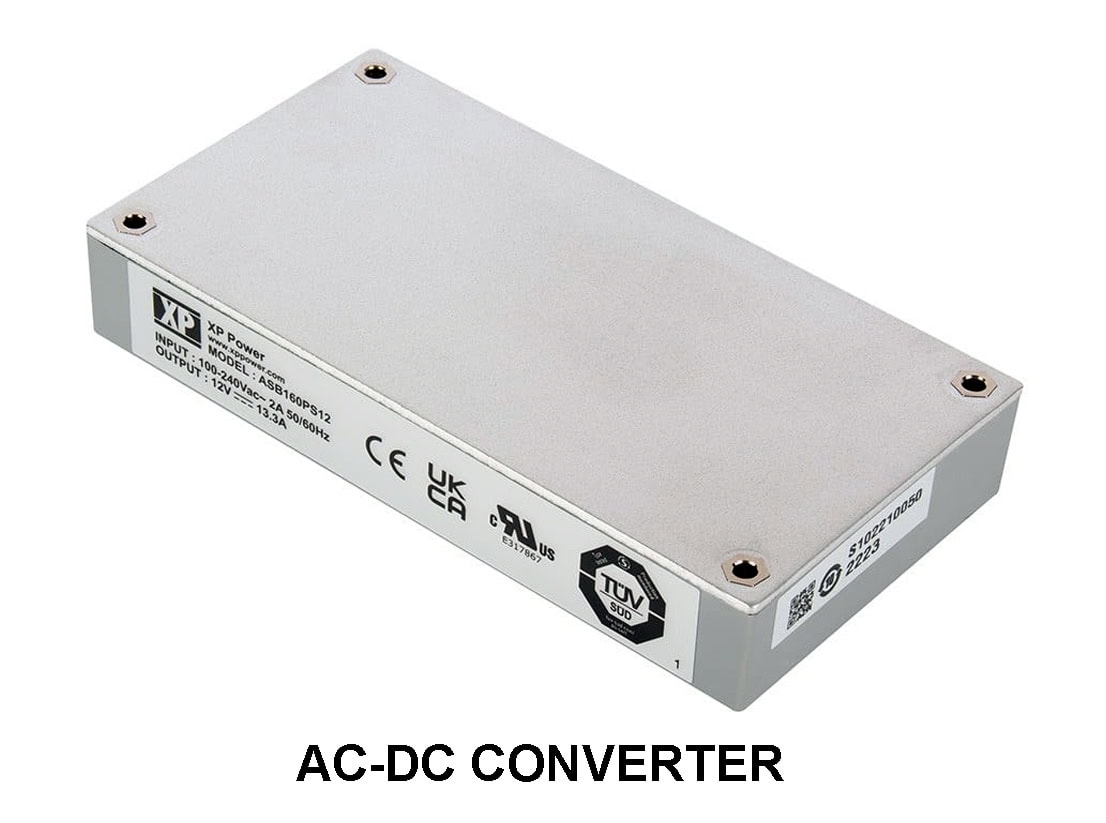

The ASB160 series is a range of complete low profile, full brick, baseplate cooled AC-DC
power supplies which requires no external components.
The series includes a complete built in EMC filter and AC fuse as well as bulk storage
capacitor providing a complete AC-DC power solution ready for installation into end
applications.
The ASB160 offers high efficiency to minimise waste heat and heat sinking requirements
and operates from -40°C to +90°C on the module baseplate.
• Complete AC-DC power supply
• No extra components required
• Baseplate cooled full brick package
• Low profile
• Input range 90 to 264VAC
• Single outputs from 12 to 54VDC
• Output voltage trim ±5%
• High efficiency - up to 93%
• Over current, over voltage and over temperature protection
• Optional heatsink available
• -40 to +90°C baseplate operating temperature
• 3 year warranty
