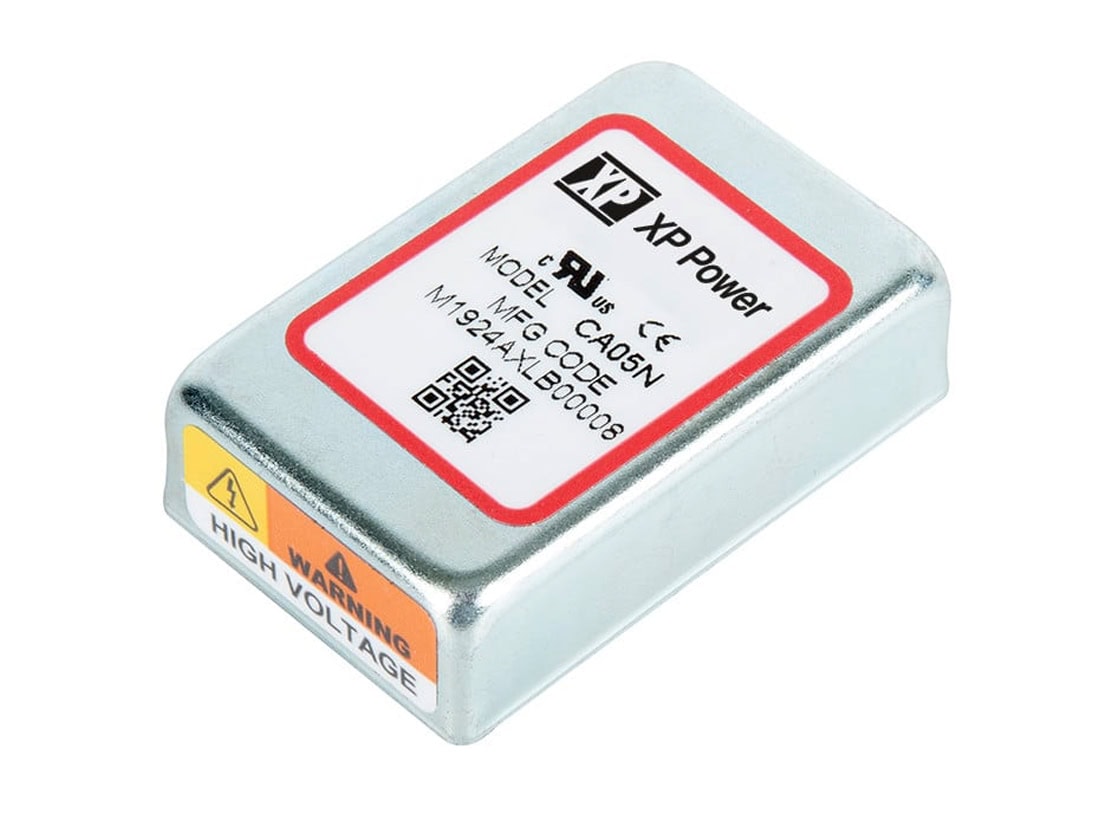

CA Series HV DC-DC
£0.00
SKU: CA Series HV DC-DC
The CA Series is a high performance, precision regulated, high voltage converter with
high stability and low ripple, along with a built-in voltage monitor output and an on-board precision voltage reference. Each model is programmed from 0 to 100% of rated output via a DAC compatible high impedance programming input. The voltage reference can be used to drive the high voltage output at 100% or to adjust the output with an external potentiometer or voltage divider. The output voltage monitor is internally buffered to provide a low impedance (up to 1mA) signal to external circuitry. A quasi-sinewave oscillator, internal transformer shielding, and an isolated steel case reduce EMI/RFI radiation to extremely low levels.
• 5V and 12V input models
• Precision voltage regulated
• Output voltages from 100V to 2000V
• 0 to 100% programmable output
• On-board voltage reference
• Operating temperature -10°C to +50°C
• <25ppm/°C temperature coefficient
• Shielded case with isolated case ground
• Ultra low ripple, down to 5ppm
• 3 year warranty
