SKU: CBM150 Series

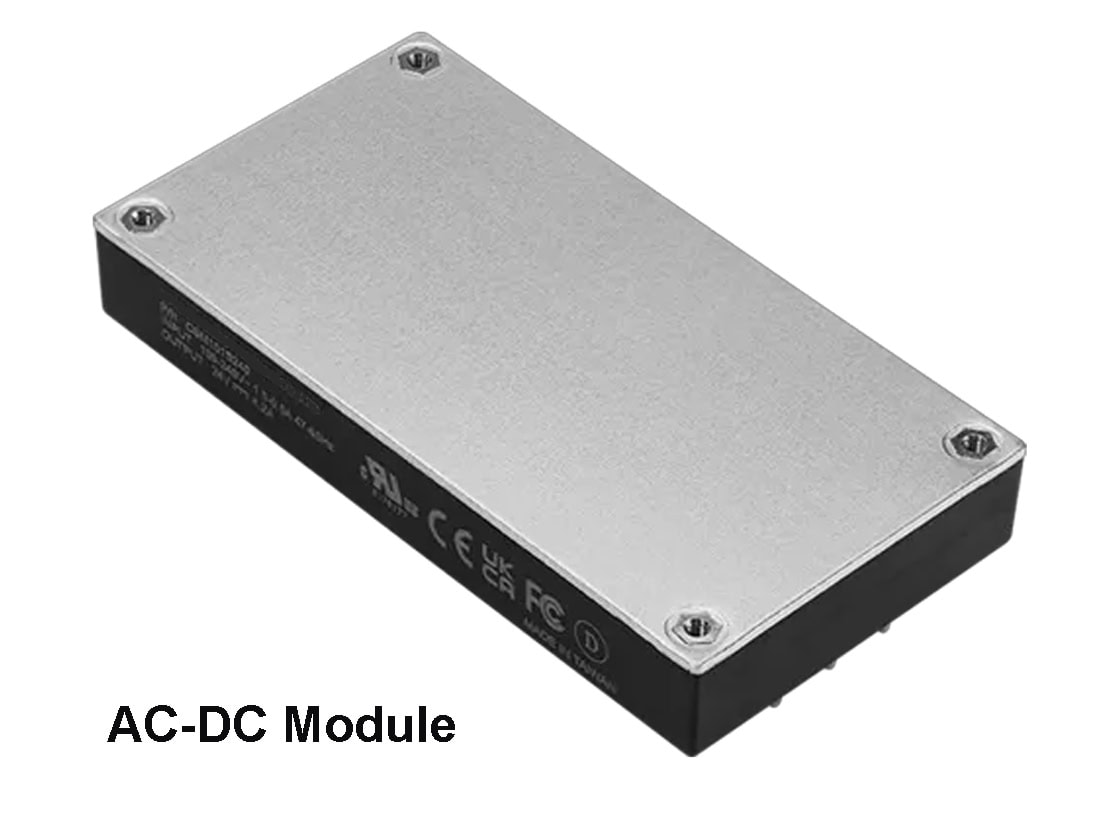

The CBM150 Series is a range of 150W high density, universal input, base plate cooled AC-DC power modules

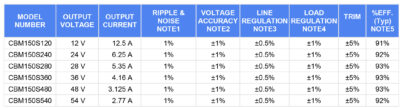

There are 4 different modules available with single output voltages of 12V, 24V, 28V, 36V , 48V or 54V DC

⚫        Universal Input Range 90~264Vac

⚫        High Efficiency up to 93%

⚫        Class I

⚫        No Load Input Power Consumption<0.5W

⚫        54V No Load Input Power Consumption<0.7W

⚫        Approval IEC/EN/UL 62368-1

⚫        Approval EN 55032 and CISPR/FCC Class B

⚫        Operating Altitude 5000m

⚫        Continuous Short Circuit Protection

⚫        Over Voltage Protection

⚫        19.7mm Ultra Low Profile Package

⚫        Full Load with Baseplate Cooled and No Fan Required

⚫        Build-in EMI Filters Bulk Capacitor and Output Capacitors

⚫        High Power Density 17.4W/Inches3

⚫        Wide Operating Temperature Range
