CCP550 Series
£0.00
SKU: CCP550 Series

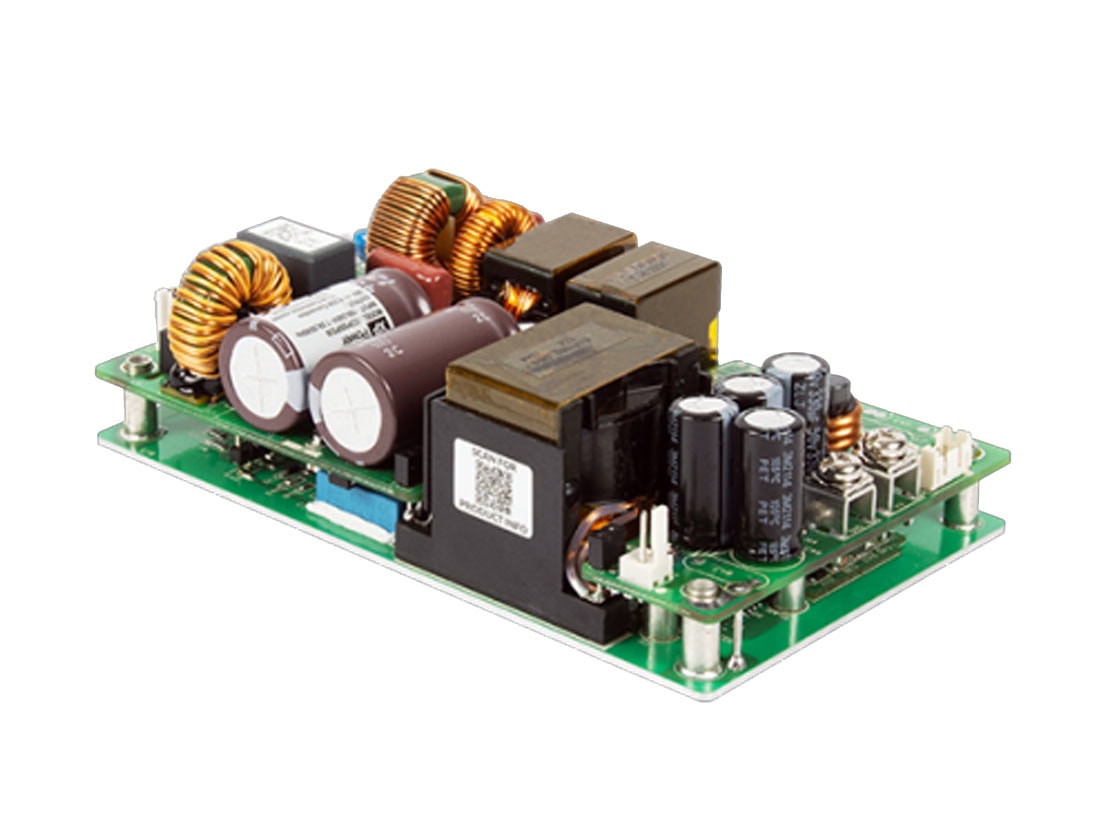

The CCP550 series of compact single output AC-DC power supplies are designed to operate in convection cooled, conduction cooled, and fan cooled applications with power ratings from 300 to 550W. CCP550 offers high power density in a low profile design, high efficiency, and quiet operation for noise sensitive applications.
CCP550, with Class B conducted emissions, worldwide industrial and medical safety approvals, 2 x MOPP isolation and low leakage currents, is designed for easy integration into a wide range of BF rated medical applications including respiratory care, imaging, patient monitoring, patient treatment, and industrial applications such as process control, test & measurement, and industrial printing.
550W fan cooled, 400W conduction cooled
Universal, single phase input: 80 to 264VAC
127.0 x 76.2mm footprint, 37.5mm profile
High efficiency, up to 92%
Low earth leakage <400μA
Low patient leakage <90μA
Medical (BF) & ITE safety approvals
Standard fan supply on all models (excluding 15V)
Optional 5VDC standby & remote on/off
3 year warranty
