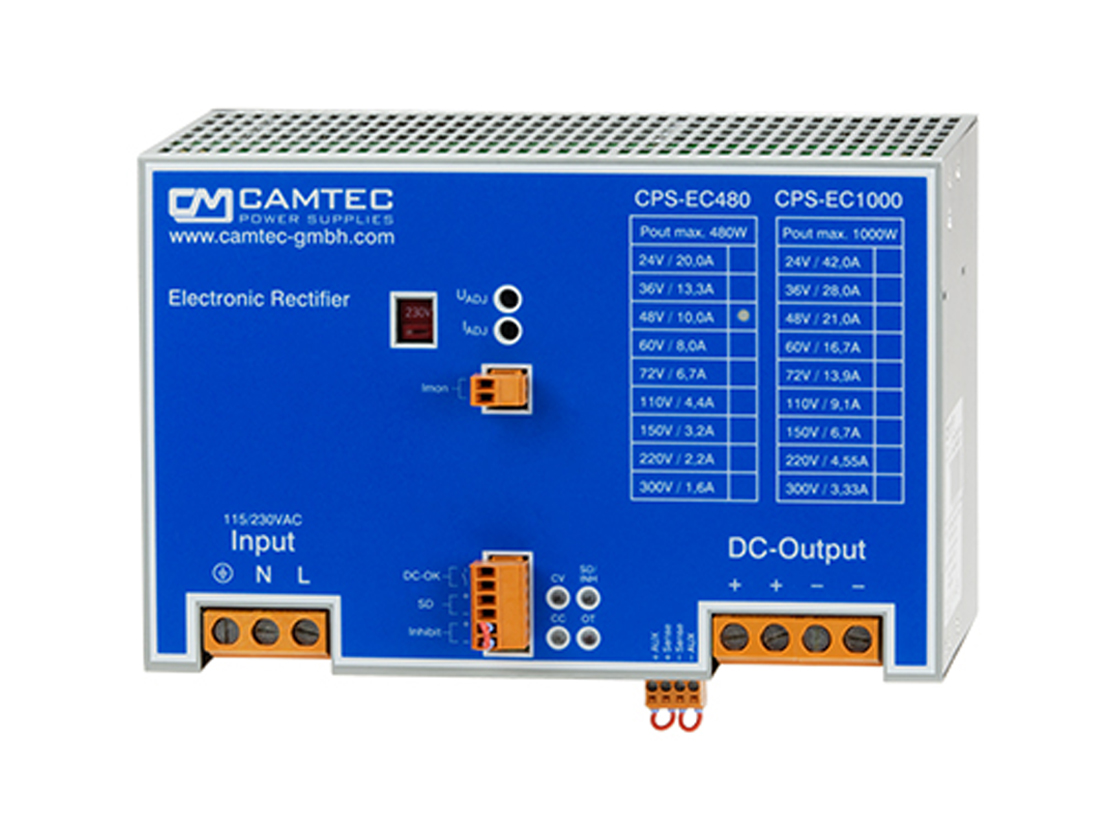

CPS-EC480 Series
£0.00
SKU: CPS-EC480
The CPS-EC series is a high precision switch mode power supply for an upscale demand. The unit is C/V adjustable. It is engineered and manufactured by CAMTEC in Germany. The designed meets challenging applications like railway, complex drives, battery charging for DC-UPS, test-stands, machine-building and professional LED lighting. The power supply provides a low ripple-noise, a precise load-regulation and high efficiency up to 94%. High-end long-life capacitors guarantee an extended hold-up-time and an extraordinary lifetime of the power supply. The circuit design starts complex loads easily. The internal control circuit manages illegal operating conditions to prevent your system from damages. The CPS-EC series features active high input transients with suppressor diodes, X2-capacitors and varistors. All inputs, outputs and feature connections are galvanic isolated. The design rules set value on extended interference immunity and safety. The unit is designed in accordance with the EN60950-1, EN62368-1, EN61010-1, EN61010-2-201 and the EMC-compatibility with EN55032.
• Real time output current monitoring
• Precision potentiometer f. voltage & current
• Power Good Relay AC & DC-ok
• C/V curve down to 0V, no fold back
• Sense control 1V per load line
• Electronic inrush current limiter 13.8Apeak
• Inhibit function (Interlock)
• External shutdown
• Efficiency up to 92%
• Precise dynamic response to load change
• Designed for long life under full stress
• Strong input filters
• Hold up time >50ms
• Soft start & auto-recovery
• High reliability, shock & vibration proof
• EMC meets CE norm class B
• Overload and short circuit protection
• Large terminals 4x AWG22 – AWG6 (0,5 – 16mm²)
