ESB303
£0.00
SKU: ESB303

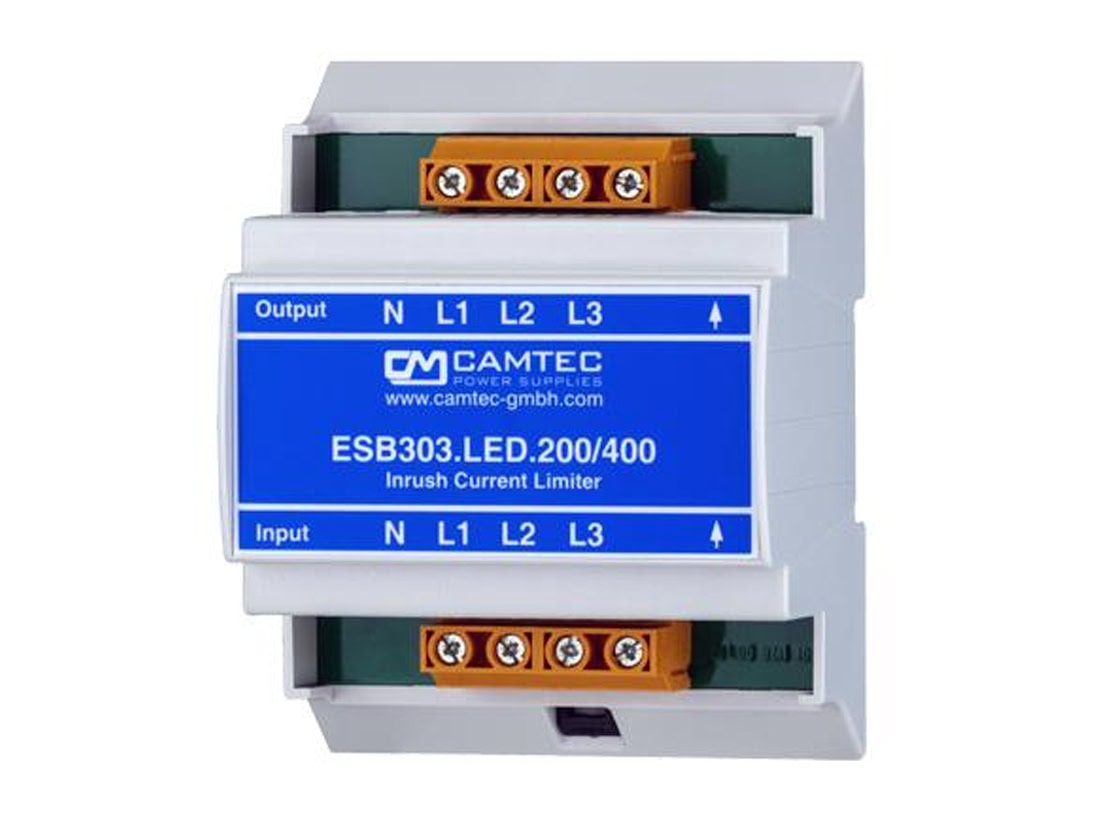

The ESB303 is a budget-priced inrush peak current limiter for high loads in LED-applications, complex automation systems and in the machine building. The ESB303 offers effective and interference free operation with capacitive loads. It is simple to integrate into existing equipment. The ESB303 is self- powering and does not require an external power supply.
• Peak- / R.M.S. current limiter
• 3x200-240Vac or 400Vac
• DIN TS35mm DIN-Rail
• Wall mount (universal housing)
• Spring-type terminals 0,5-6mm² / 21-10AWG
• Integrated bypass relay
• Capacitive load 6.000uF per phase conductor
• Integrated over temperature protection
• IP20 UL94V-0 housing DIN43880
for DIN/VDE0603 cutout box
• EN62368-1, EN55032 class B
