ESC Series
£0.00
SKU: ESC Series

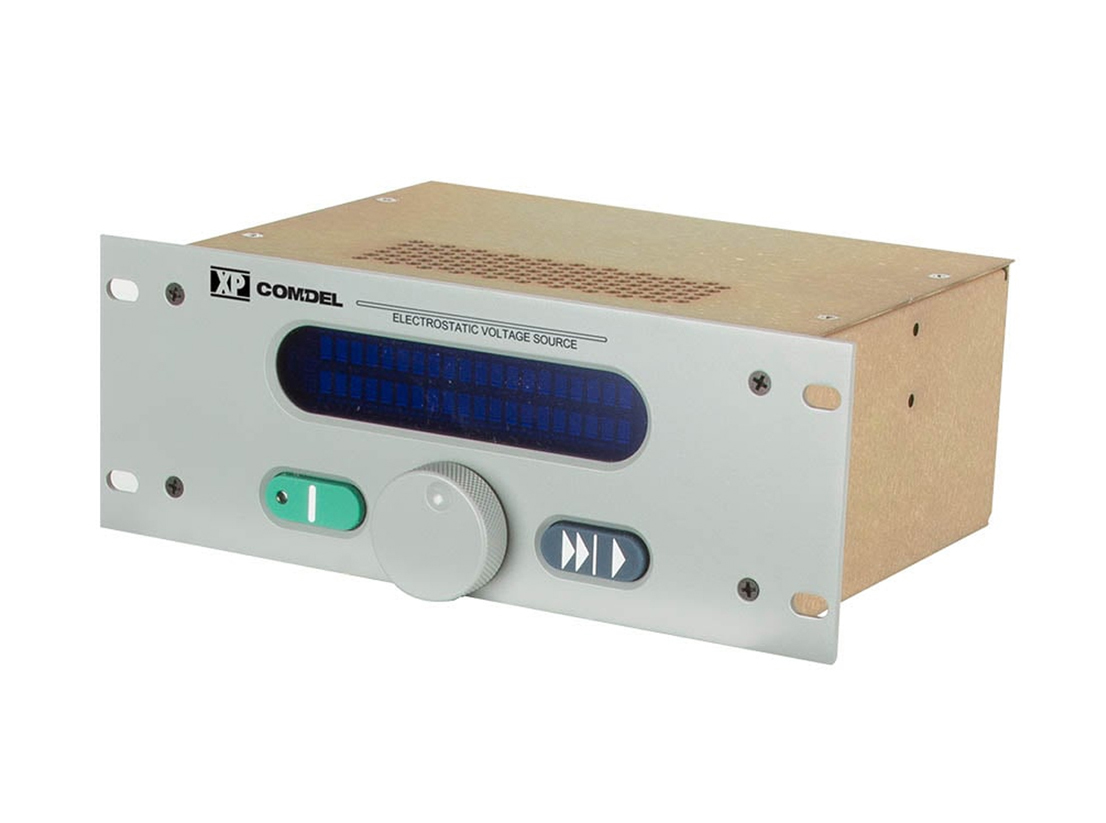

The ESC Series is a high voltage power system with floating outputs up to 15kV (±7500V) with both bipolar and unipolar versions. The output polarity can be reversed automatically with an input signal to the remote interface connector (25 pin D-type female). Input power is 24VDC via 3-pin Molex type, non-reversible quick disconnect. MHV connectors are used for the HV outputs, and a BNC for the center tap connection.
Other features include automatic discharge, short circuit protection, output filtering options, and RS-232 or DeviceNET protocols. The ESC Series is an ideal solution to satisfy your electro-static high voltage needs in a highly controllable rack-mount package that is easily integrated into your industrial environment.

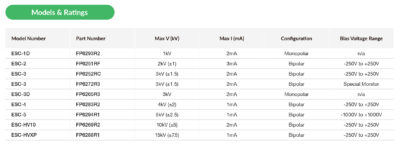

• Output Voltage Range: 1kV–15kV
• Single Output and Bipolar Models
• Input to Output Isolation: >500MΩ
• Automatic Polarity Reversal
• Automatic Discharge
• Short Circuit and Open Circuit Protection
• Built-in RF Filtering Available
• Analog / RS232 / DeviceNet (option)
