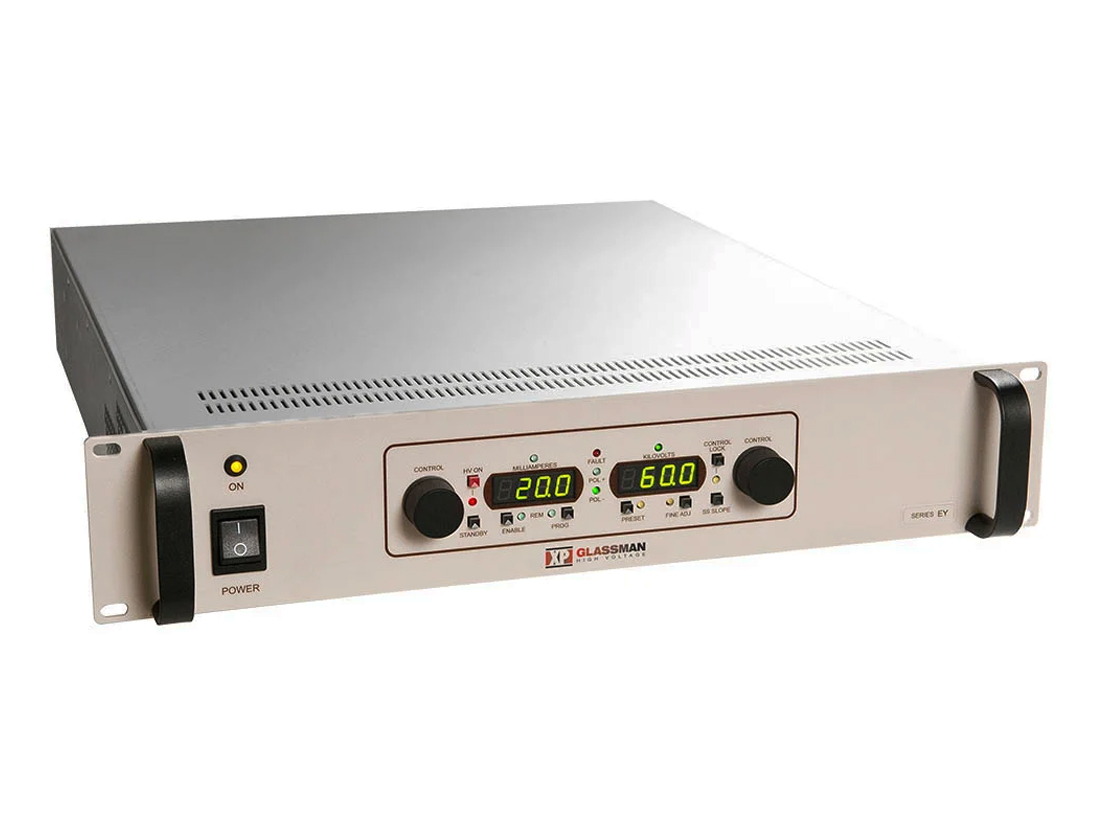

EY Series HV AC-DC
£0.00
SKU: EY Series HV AC-DC
The EY series of 1.2kW high voltage supplies with outputs from 0 - 1kV to 0 - 60kV DC, feature flexible embedded controls with low ripple & noise.
Automatic crossover from constant voltage to constant current regulation provides protection against overloads, arcs, and short circuits.
The EY series are air insulated, fast response units, with tight regulation and extremely low arc discharge currents, in a 2U 19” rack mount case.

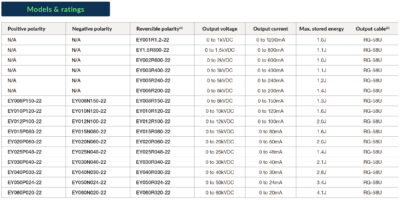

Output voltages 0-1kVDC to 0-60kVDC
2U 19" rack mount
RS232/USB control & monitor standard, Ethernet is optional
Output voltage & current regulated
Low ripple <0.03% RMS of rated voltage at full load
Voltage & current monitor outputs
Single phase AC input
Efficiency >85%
Air Insulated
Short circuit, arc & overload protection
CE marked for EMC, low voltage (LVD) & RoHS directives
Operating temperature: -20°C to +40°C
3 year warranty
