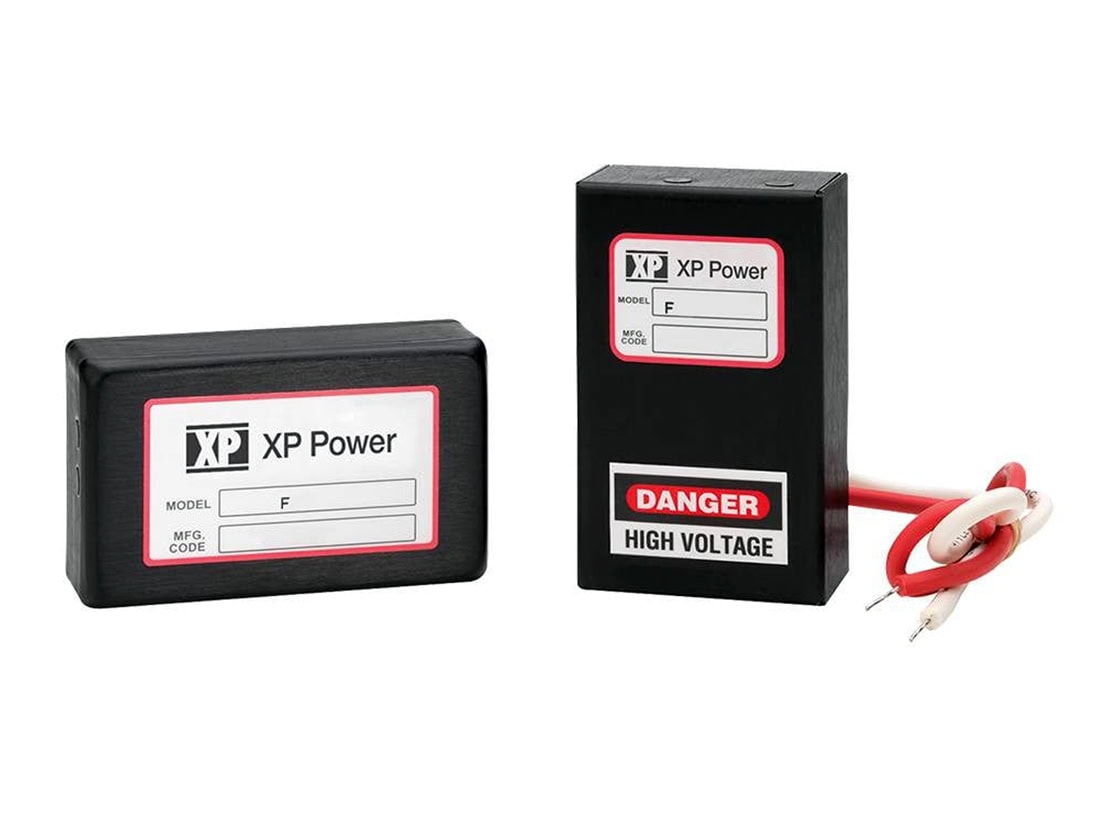

F Series HV DC-DC
£0.00
SKU: F Series HV DC-DC
The F Series is a broad line of robust, field-proven DC to HV DC converters which deliver 10 Watts continuous output power. Outputs range from 100V to 12kV. The input and output are galvanically isolated so a unit can be used to deliver a positive or negative high voltage output. The output voltage is proportional to input voltage with a low 0.7V typical turn-on voltage.
The F Series employs a qμasi-sinewave oscillator, a fully enclosed transformer, input and output filtering, and a 5-sided metal enclosure. As a result, these modules exhibit very low EMI/RFI, noise and ripple. A dual output option has a center-tap pin which, when grounded provides both positive and negative outputs from one compact module.
• Output voltages from 100V to 12kV
• Output voltage proportional to input
• Low turn-on voltage 0.7VDC
• Input to output isolation
• Dual output option
• Arc and short circuit protected
• No minimum load
• 3 year warranty
