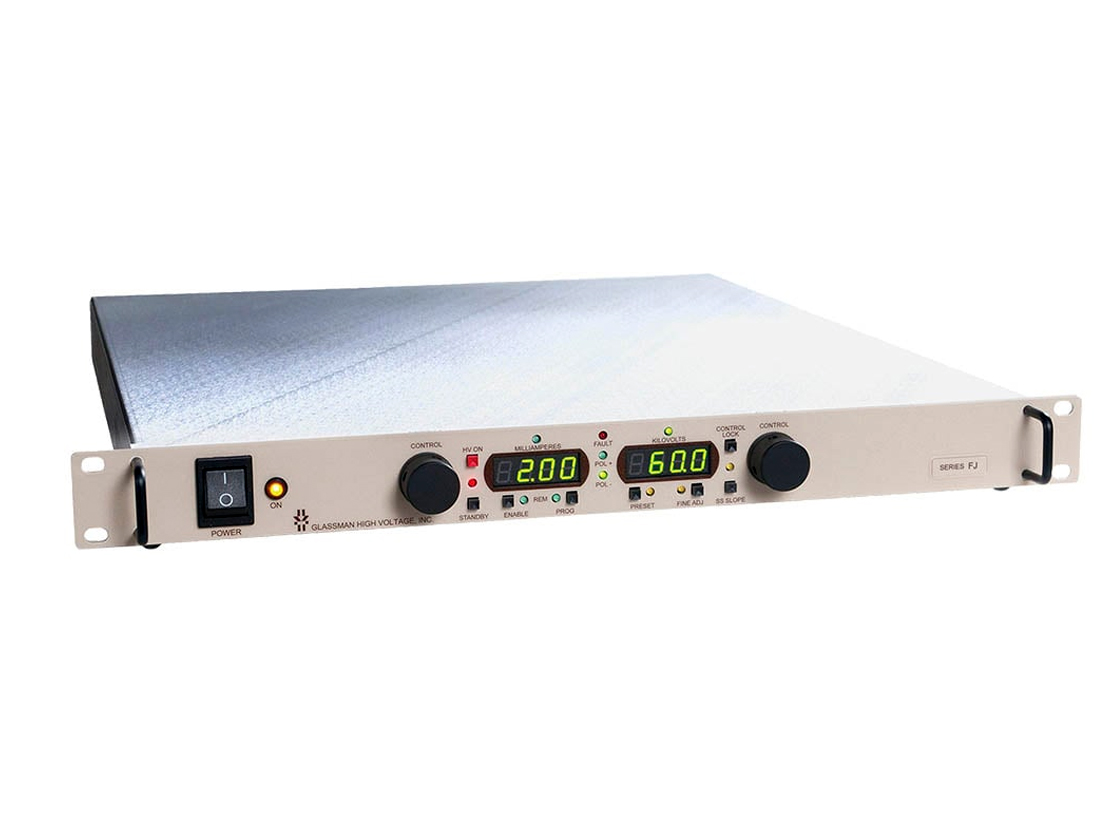

FJ Series HV AC-DC
£0.00
SKU: FJ Series HV AC-DC
Designed for electrical design engineers and system integration engineers in a wide range of industries including ion implant, e-beam welding and e-beam additive manufacturing and many other application specific markets, the FJ series addresses challenges engineers face with limited high voltage integration experience and tight time lines.

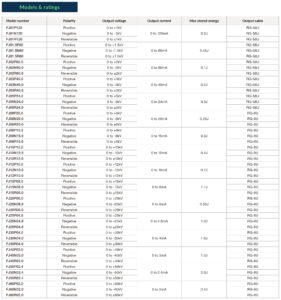

The FJ series offers a wide range of standard outputs up to 60kV at 120W in a light form factor with various output control options, input voltages, and low output discharge currents allowing for extremely simple integration into a new system or tool.
Output voltages up to 60kV
0 to 100% programmable voltage and current
Local, analogue and RS232/USB digital control, Ethernet is optional
Single phase AC input, selectable
Output voltage and current regulated
Automatic crossover between constant kV/constant mA operation
Voltage and current monitor outputs
Operating temperature: -20°C to +40°C, no derating
Short circuit, arc quench, arc count, overload and thermal protection
Efficiency >85%
Low ripple <0.02% RMS of rated voltage at full load
3 year warranty
