FT Series HV AC-DC
£0.00
SKU: FT Series HV AC-DC

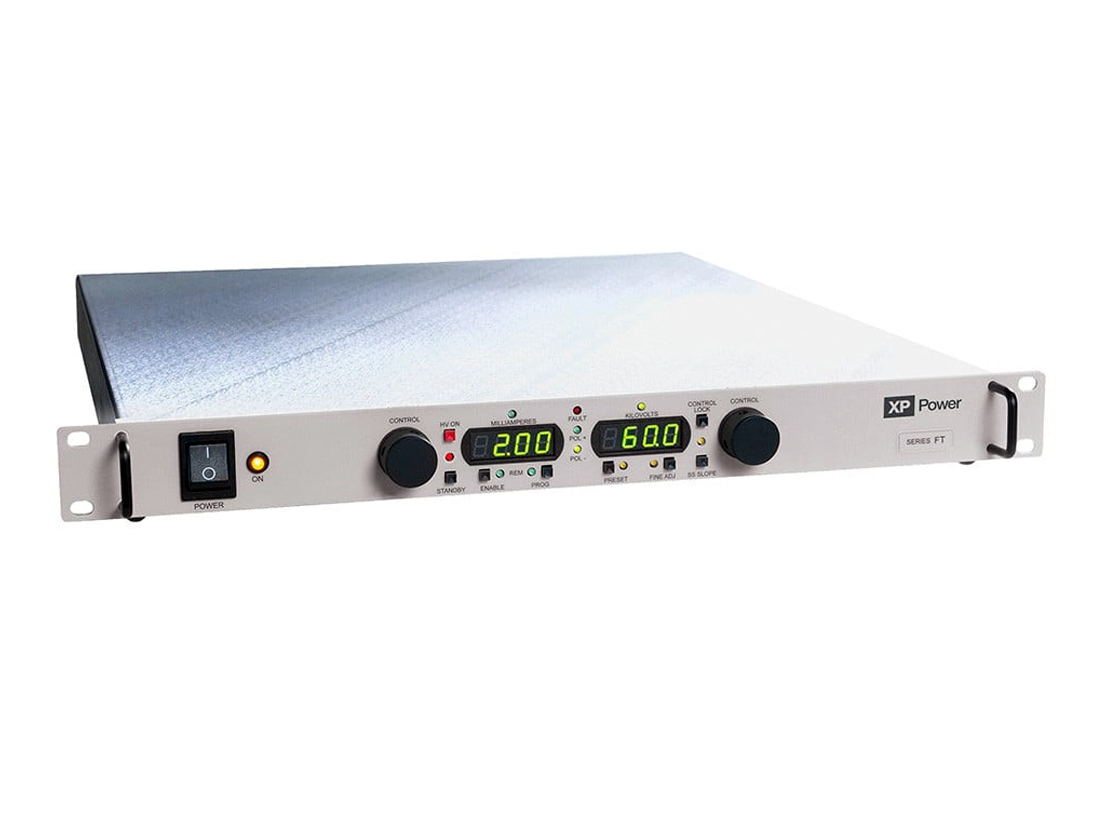

The FT series of high voltage AC-DC power supplies offer a wide range of voltage outputs
from 1kV to 60kV at 750W in a compact, 1U rack-mount format. FT series offers fully
adjustable outputs, analog and digital interfaces and control and monitoring options,
allowing maximum flexibility for high voltage applications.
Featuring high efficiency, performance, reliability, and stability with air insulation, the
FT series ensures low cost of ownership and is specifically designed for easy integration
into a wide range of semiconductor manufacturing and industrial technology applications
including ion implantation, E-beam and additive manufacturing.
Output voltages up to 60kV
0 to 100% programmable voltage and current
Analog and RS232 digital control, Ethernet optional
Compact 1U 19” rack-mount
90VAC to 264VAC input
Output voltage and current regulated
Voltage and current monitoring
Positive, negative or reversible polarity
Efficiency >85%
Low ripple
Short circuit, arc quench, arc count, overload and thermal protection
CE marked for EMC, low voltage (LVD) and RoHS directives
3 year warranty
