G Series HV DC-DC
£0.00
SKU: G Series HV DC-DC

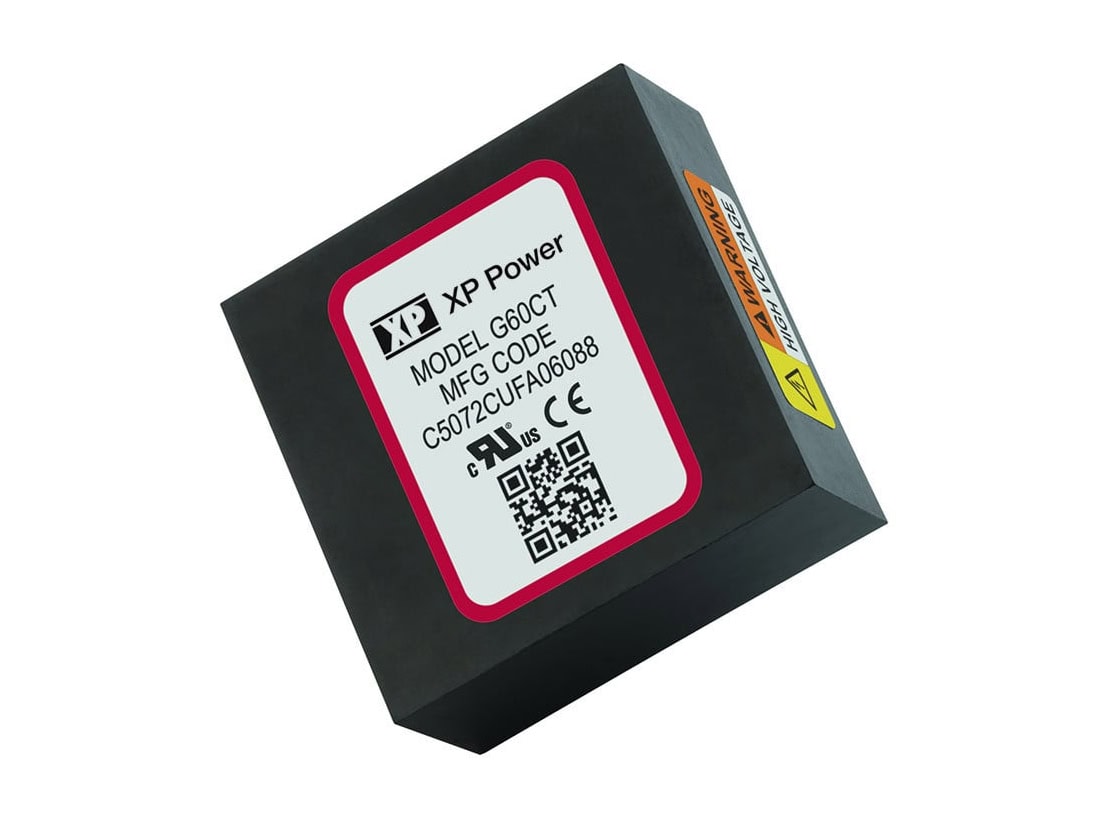

The G Series is a line of miniature high voltage converters that provide up to 6kV output,
positive or negative, in a compact PCB mount package. The isolated output is directly
proportional to the input, and is linear from approximately 0.7 volts in. Excellent filtering
techniques and a low noise quasi-sinewave oscillator provide clean, reliable DC to HV DC
conversion with low ripple and low EMI/RFI.
The isolated output allows for user selectable output polarity. When the optional center-tap
pin is grounded, the unit provides both positive and negative outputs from one compact,
low cost module. The pin pattern used on this model has become an industry standard for
high voltage modules. The G Series units are component level converters that are easy to
integrate, low cost, and come with decades of field proven reliability.
• Output voltages from 100V to 6kV
• Output voltage proportional to input
• Low turn-on voltage 0.7VDC
• Input to output isolation
• Dual output models
• No minimum load
• 3 year warranty
