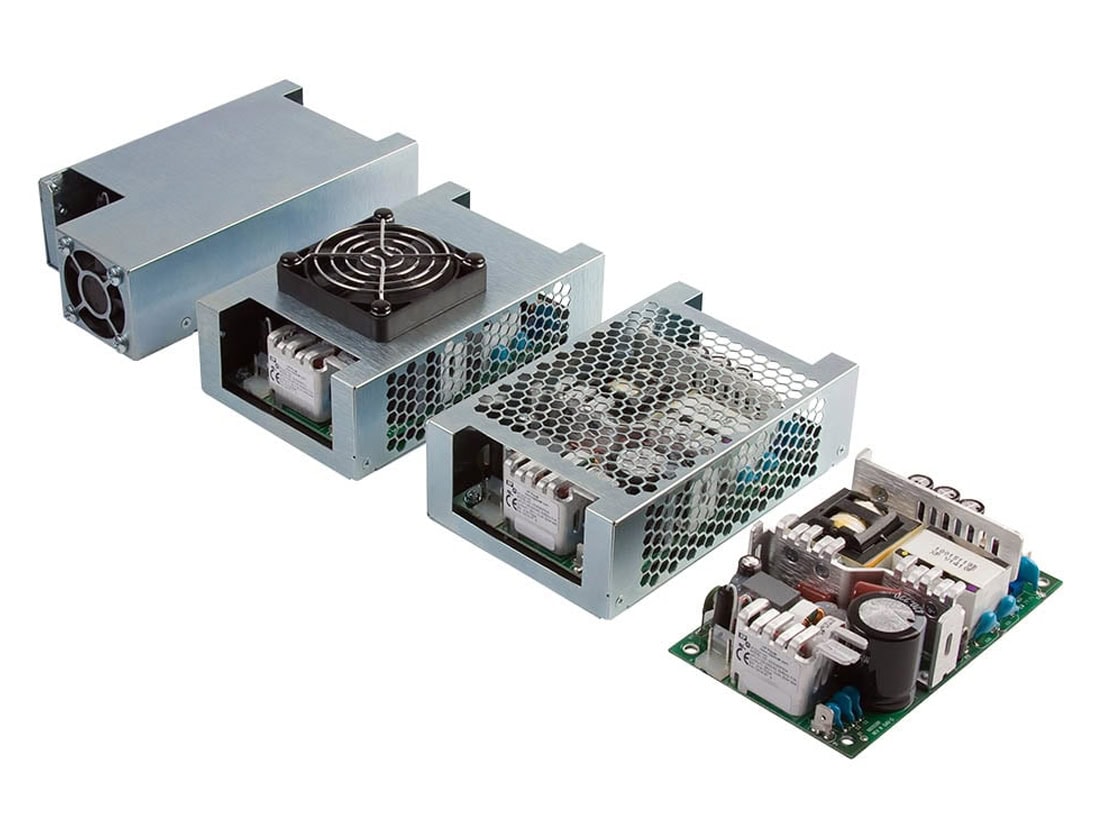

GCS180 Series
£0.00
SKU: GCS180 Series
The GCS180 series has been designed to minimise the no load power consumption and
maximise efficiency in order to facilitate equipment design to the latest environmental
legislation.
Approved for Class I and Class II applications, this range of single output AC-DC power
supplies are packaged in an industry standard 5.0” x 3.0” x 1.42” package and achieves
EN55011/32 Level B emissions compliance whilst maintaining very low earth leakage
currents, making them suitable for a wide range of 1U and other industrial electronics, ITE
and medical applications.
• Single outputs from 12V to 48VDC
• Universal 85 to 264VAC input range
• ITE and medical safety approvals (Class I & II)
• <0.5W standby power
• Class B emissions
• Remote on/off optional, 12VDC 0.6A fan supply
• Overcurrent, overvoltage and short-circuit protection
• Operating temperature range from -40°C to +70°C
• 3 year warranty
