GCS250 Series
£0.00
SKU: GCS250 Series
The GCS250 is a series of medical AC-DC power supplies with 250W fan cooled and 180W
convection rating.
Designed to minimize no load power consumption, the GCS250 series of high efficiency,
single-output power supplies are packaged in an industry standard 5.0” x 3.0” x 1.42”
package making them suitable for medical, industrial, information technology and domestic
applications. Class I and Class II versions are available, allowing use in professional healthcare
facilities such as hospitals and remotely in patients’ homes or workplaces.
With a wide range of international medical safety and ITE approvals, class B compliance
for conducted and radiated emissions, very low earth leakage currents, and 2 x MOPP
protection, the GCS250 benefits system designers with easy integration into a wide range of
applications.

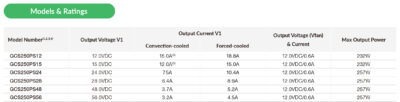

• Single outputs from 12V to 56VDC
• Universal 85 to 264VAC input range
• High efficiency – up to 93%
• ITE and medical safety approvals (Class I & II)
• 4kVAC input to output isolation
• Class B conducted emissions
• Remote on/off option, 12VDC 0.6A fan supply
• Overcurrent, overvoltage and short-circuit protection
• Operating temperature range from -40°C to +70°C
