GCS350 Series
£0.00
SKU: GCS350 Series

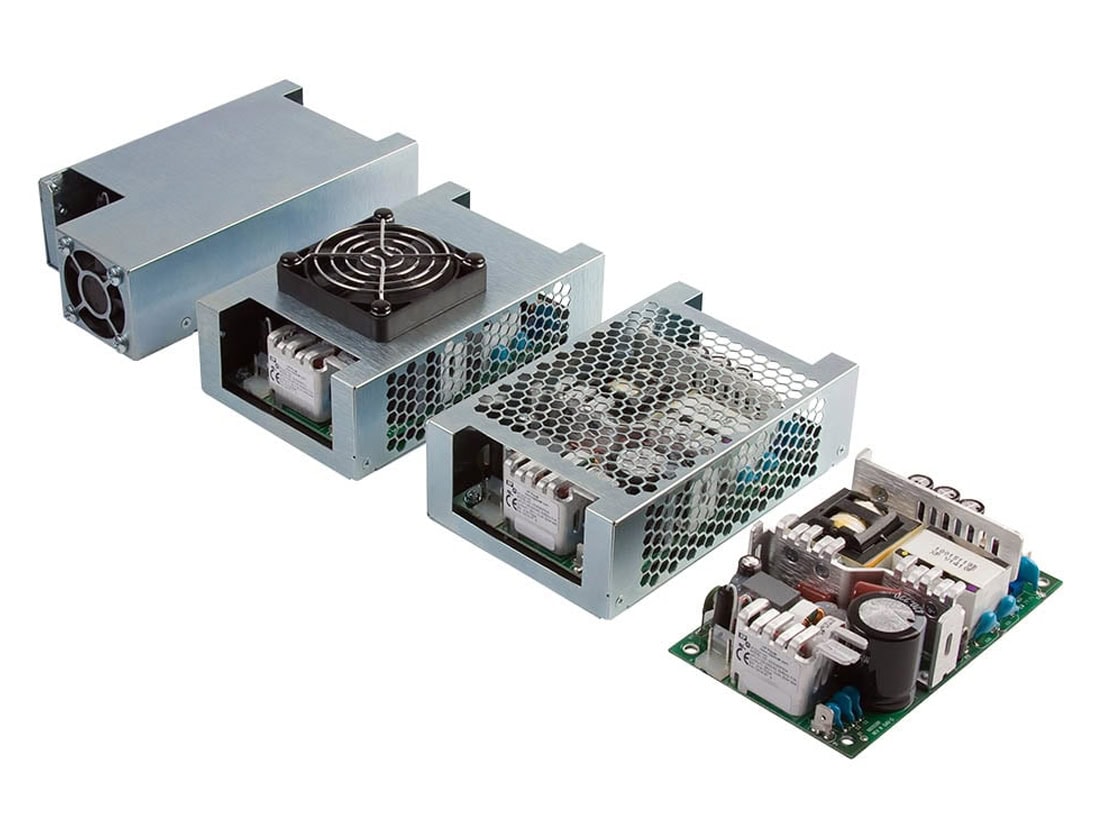

The GCS350 is a series of medical AC-DC power supplies with 350W fan cooled and 200W convection rating.
Designed to minimize no load power consumption, the GCS350 series of high efficiency, single-output power supplies are packaged in an industry standard 127.0 x 76.2 x 36.3mm package making them suitable for medical, industrial, information technology and domestic applications. Class I and Class II versions are available, allowing use in professional healthcare facilities such as hospitals and remotely in patients’ homes or workplaces.
With a wide range of international medical safety and ITE approvals, class B compliance for conducted and radiated emissions, very low earth leakage currents, and 2 x MOPP protection, the GCS350 benefits system designers with easy integration into a wide range of applications.
Single outputs from 12V to 56VDC
Universal 85 to 264VAC input range
High efficiency – up to 93%
ITE and medical safety approvals (Class I & II)
4kVAC input to output isolation
Class B conducted emissions
Remote On/Off, 12VDC 0.6A fan supply
Overcurrent, overvoltage and short-circuit protection
-40°C to +70°C operating temperature
3 year warranty
