HBU250 / HEU250 series

£0.00

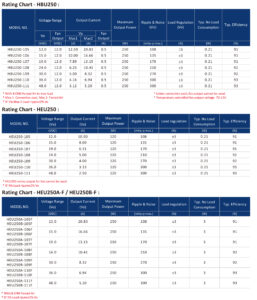

HBU250,HEU250,HEU250A-F,HEU250B-F-DATASHEET

SKU: HBU250 / HEU250 series Categories: , , , ,
application/pdf iconVIEW SPECS
ADD TO ENQUIRY

SKU: HBU250 / HEU250 series

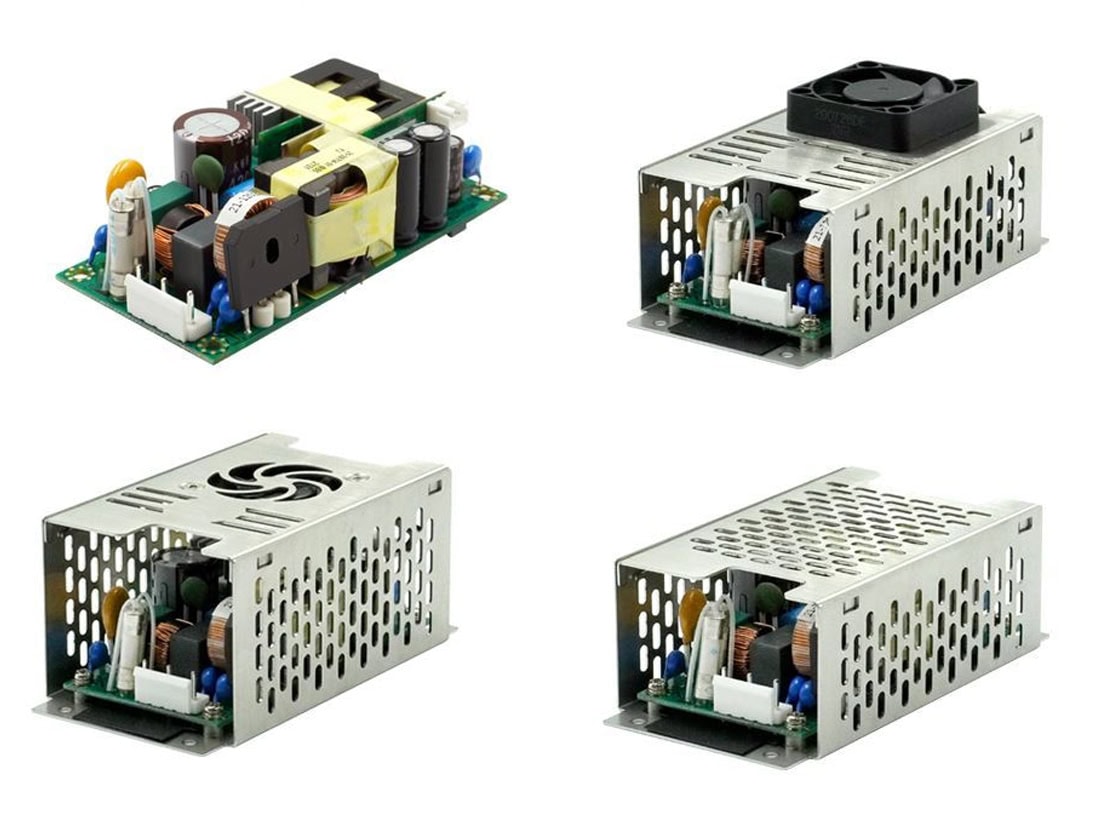

HBU250 / HEU250 series is a power supply with medical and ITE safety approvals that provides 250 Watts output power and is available in 12V-48V output with options for open-frame (2”x4”x1.28”) and cover with fan. The series features a wide operating temperature of -40°C to +70°C. All units pass burn-in test at full load condition.

Features

Wide Operating Voltage, 85 to 264VAC, 47 to 63 Hz
Single Output from 12V to 48V
Protection: OVP, OLP, OTP, SCP
Size: 2”x4”x1.28”, 24.41W/in³
Input to Output: 2MOPP
