HPA1K5 series
£0.00
SKU: HPA1K5 series

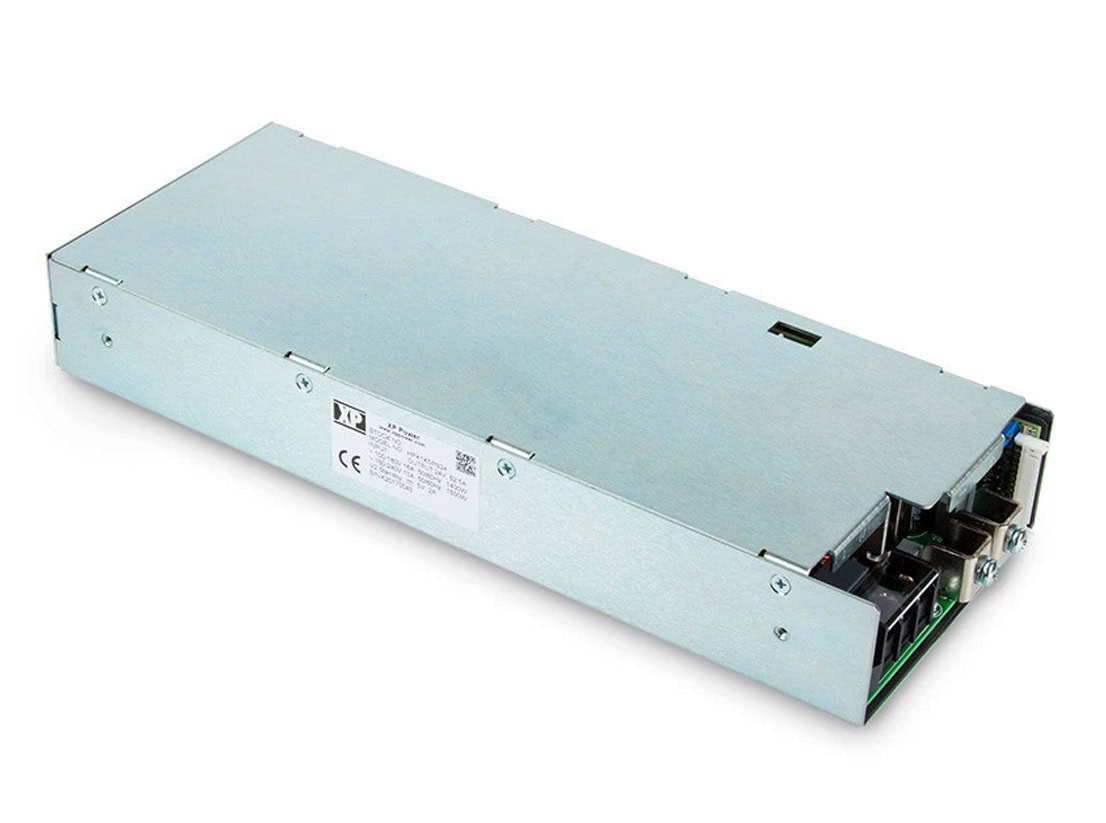

The HPA1K5 series is available in 24V, 36V, 48V and 60V DC versions and offers users both output voltage and output current programming This is via voltage, I2C PMBus, RS485 and CANopen in a very high efficiency, high power density 1.5kW chassis mount package. Options are available for RS232 or UART.
Measuring just 279.4 x 106.6 x 41.6mm, the HPA1K5 also features active current sharing, remote on/off, remote sense and a power OK signal. The 5V/2A standby output is available whenever the mains supply is present.
Programmable output voltage (0-105%)
Programmable output current (0-110%)
High efficiency - up to 93%
ITE and medical approvals
Parallel operation
Analog and digital interfaces
Multiple digital protocols - PMBus, CANopen, MODBUS and SCPI
Fully featured signals and controls
Graphical user interface (GUI)
5V/2A standby supply
SEMI F47 compliant
3 year warranty
