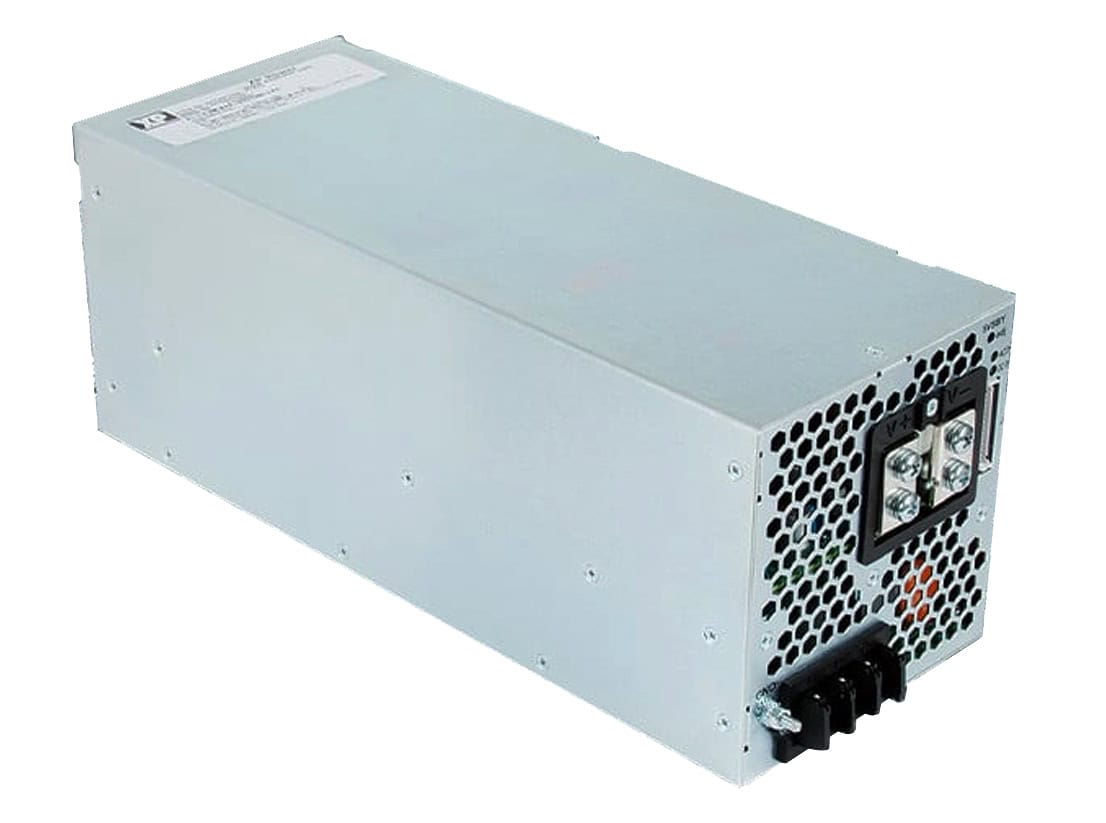

HPT5K0 Series
£0.00
SKU: HPT5K0 Series
The HPT5K0 series delivers significant flexibility in a broad scope of industrial and scientific applications, through its sophisticated digital control and monitoring functions. High power density, class B conducted emissions and medical safety approvals up to 200VDC are highlights of the rich feature set. Constant voltage or current mode operation are readily configured via either linear voltage programming; a graphical user interface or one of the range of communication protocols included by default. The 400VDC and 800VDC models extend the series range, with specialised connectors, and a safety interlock.
This digital product series also retains conventional alarm and control features, such as active current sharing, remote On/Off and AC/DC OK signals, to deliver a highly extensible building block for scalable industrial systems.
3 phase 180 to 528VAC input – 3 wire & earth
High efficiency – up to 94%
Programmable output voltage (0-105%)
Programmable output current (0-110%)
Active current sharing in parallel configurations
Safety interlock
PMBus, CANopen, Modbus & SCPI protocols
Rich suite of configurable signals & controls
5VDC/2A housekeeping supply
SEMI F47 compliant
3 year warranty
