HPU1K5 Series
£0.00
SKU: HPU1K5 Series

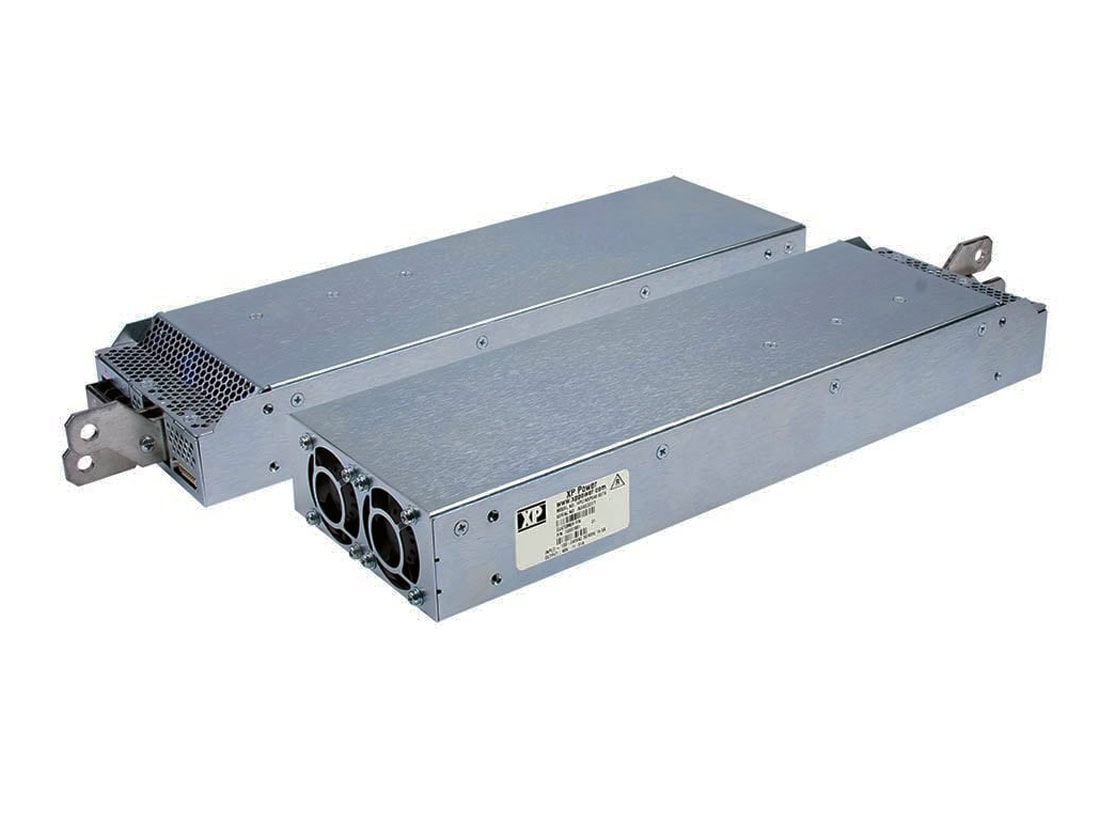

The HPU1K5 is a low profile 1.5kW AC-DC power supply with high power density that is designed for use in a wide range of industrial electronics and medical applications. The HPU1K5 delivers 1.2kW at Low Line and 1.5kW at High Line with three output models 12V, 24V & 48VDC.
The HPU1K5 is supplied with a range of signals and control, self cooling via integral fans and customer mounting options on three faces making it suitable for a variety of enclosures and applications where status reporting and control functions are increasingly required.
1.5kW high line 1.2kW low line fan cooled
Single phase input 85 to 264VAC
Regulated single outputs 12V, 24V & 48VDC
Medical safety approvals (-M versions)
Variable fan speed to reduce audible noise
AC OK, DC OK & inhibit
Fault & overtemperature signals
SEMI F47 compliant
5VDC standby
-20°C to +70°C operation
3 year warranty
