HPV10001 Series
£0.00
SKU: HPV10001

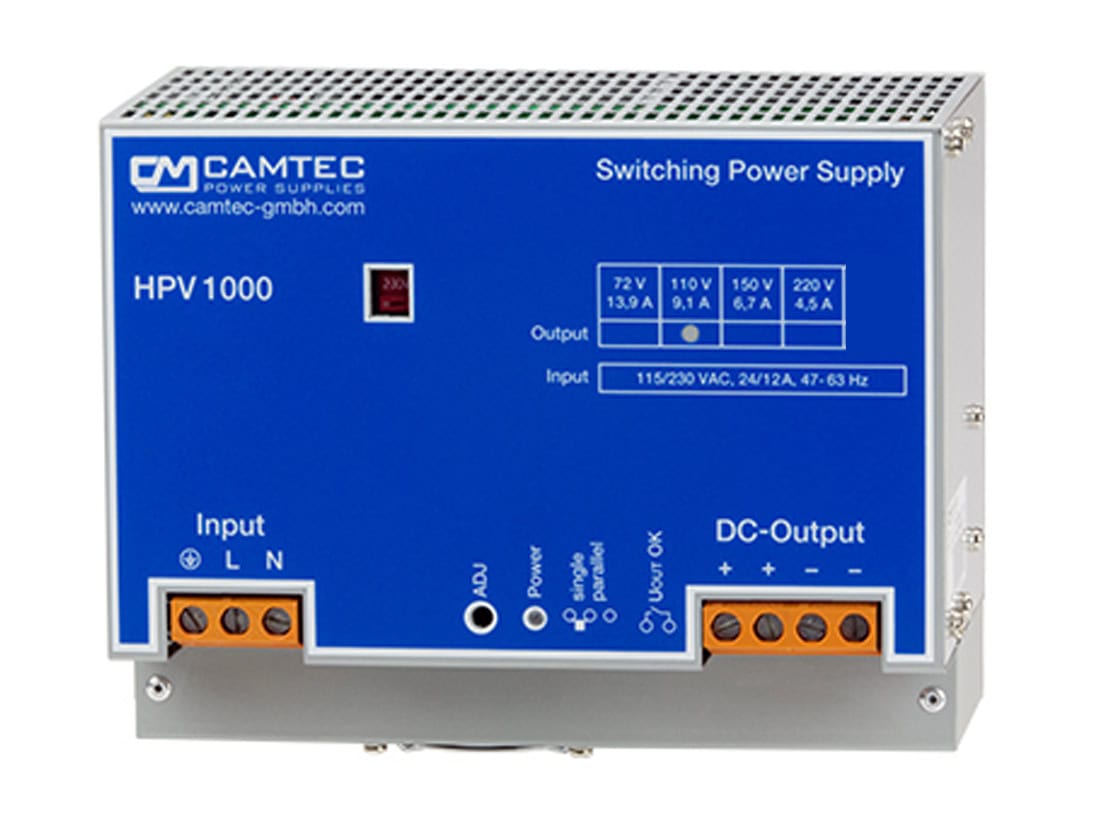

1008W Industrial Power Supply
TS35mm DIN-Rail mains supply with high output voltage of 72V, 110V, 150V or 220V DC output, with wide adjustment range.
The designed meets challenging applications like complex dc-drives, piezo print head, test-stands, and professional machine-building. The power supply provides a low ripple-noise, a precise load-regulation and high efficiency up to 93%. High-end long-life capacitors guarantee an extended hold-up-time and an extraordinary lifetime of the power supply. The circuit design starts complex loads easily. The internal control circuit manages illegal operating conditions to prevent your system from damages. The HPV series features active high input transients with suppressor diodes, X2-capacitors and varistors. All inputs, outputs and feature connections are galvanic isolated. The design rules set value on extended interference immunity and safety.
The unit is designed in accordance with the EN61010-1, EN61010-2-201, EN62368-1, EN60950-1 and the EMC-compatibility with EN55032.
• C/V curve down to 0V, no fold back
• Power Good Relay AC & DC-ok optional
• Efficiency up to 93%
• Hold up time >30ms
• Soft start & auto-recovery
• Precise dynamic response to load change
• Designed for long life under full stress
• Strong input filters
• High reliability, shock & vibration proof
• EMC meets CE norm class B
• Overload and short circuit protection
• Large terminals 4x AWG20 – AWG6 (0,5 – 16mm²)
