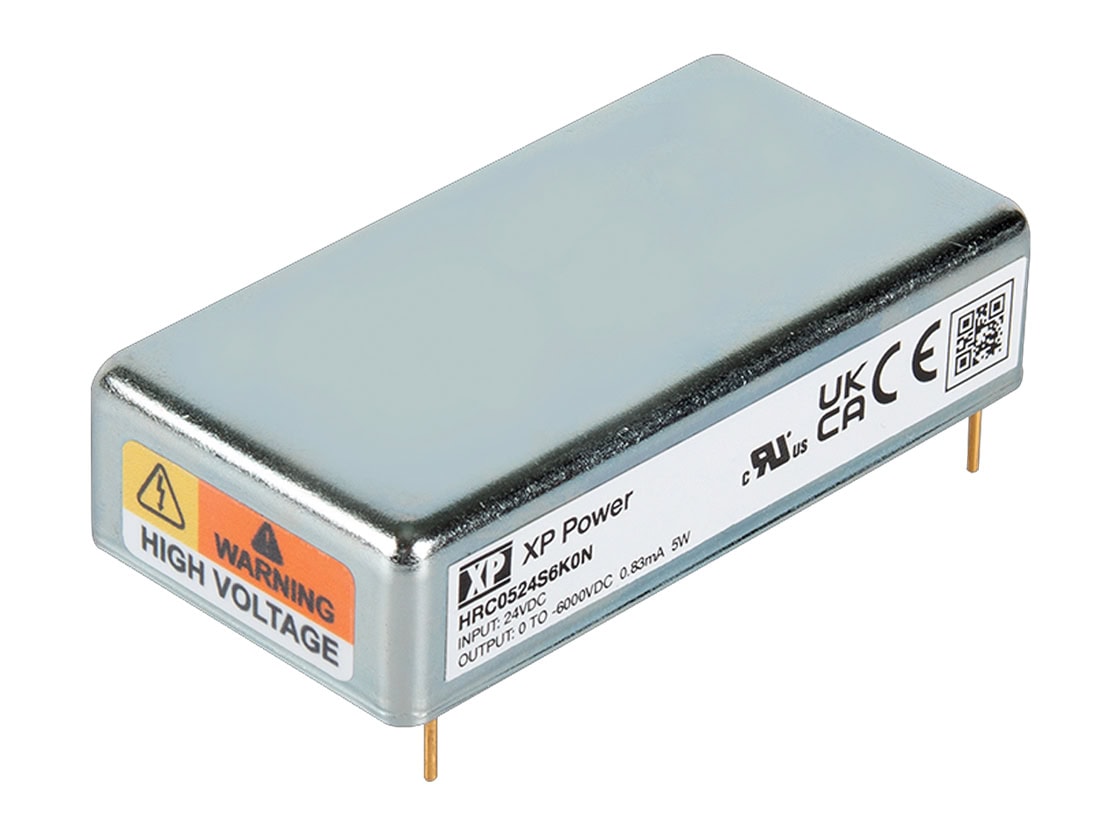

HRC05 Series HV DC-DC
£0.00
SKU: HRC05 Series HV DC-DC
The HRC05 series of regulated 5W high voltage DC-DC converters provide fully adjustable output voltages up to 6kV, with built in short circuit and overload protection, in a compact PCB-mount package. HRC05’s precise load and line regulation ensures reliable, stable and accurate power delivery, and its low ripple is ideal for critical, noise-sensitive applications.
HRC05 features voltage and current monitoring and 0 to 100% voltage control for increased safety, flexibility and enhanced efficiency. Its advanced functionality, technical specifications, wide operating temperature, safety approvals and compact package allow easy integration into a wide range of high voltage applications in analytical instruments, medical devices and semiconductor fabrication equipment.
+24VDC input (22 to 30V)
Voltage outputs from 600V to 6kV
0 to 100% programmable output voltage
Voltage and current monitor output
On-board +5V reference
Load and line regulation <0.01%
Low ripple <0.01%
Short circuit, arc and overload protections
UL62368 and UL61010 approvals
Operating temperature: -40°C to +70°C
3 year warranty
