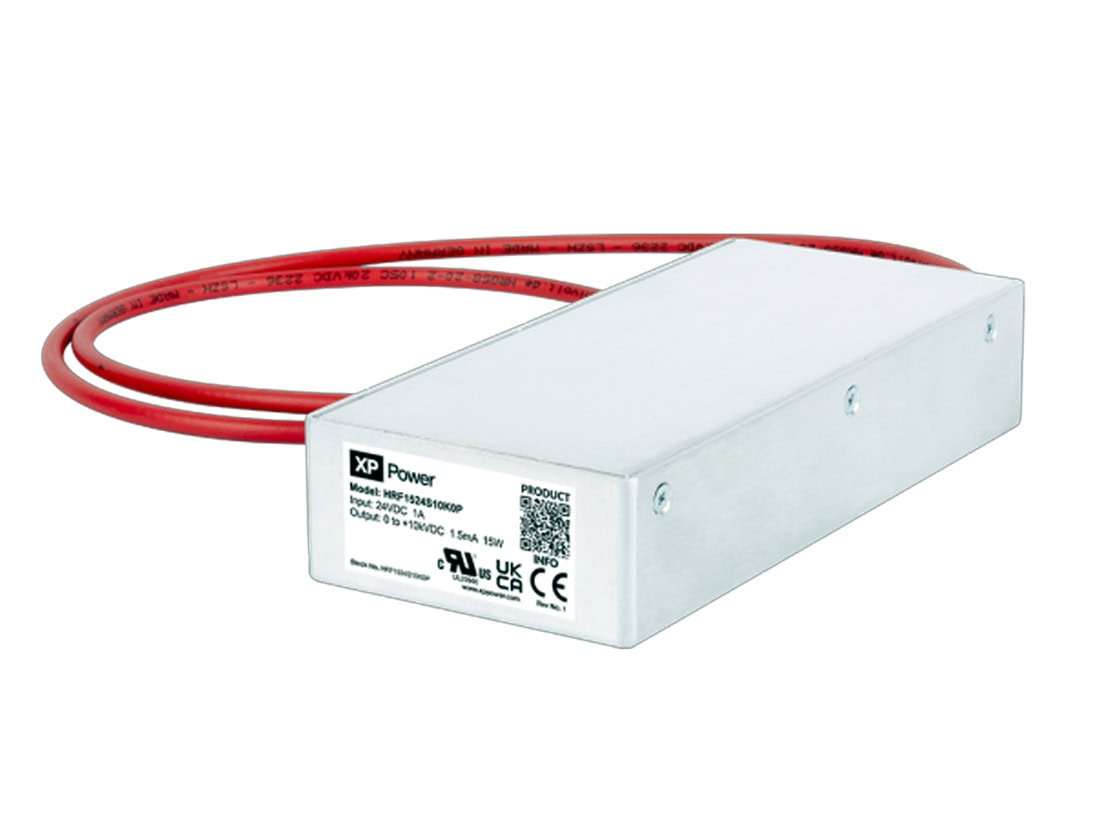

HRF15 Series HV DC-DC
£0.00
SKU: HRF15 Series HV DC-DC
The HRF15 series of 15W precision high voltage DC-DC converters provide fully adjustable output voltages up to 15kV, with built-in short-circuit and overload protection. HRF15’s precise load and line regulation, stability, and low ripple ensure reliable and accurate power delivery for critical, noise-sensitive applications.
In addition to standard analog monitoring and control, the HRF15 is also available in a digital version with both output voltage and current programming through PMBus via I²C. The digital interface simplifies system integration through an intuitive UI and improves reliability with advanced monitoring features, including status flags, multi-unit operation, and statistical data logging.
HRF15 features voltage and current monitoring and 0 to 100% voltage control for increased safety, flexibility, and enhanced efficiency. Its advanced functionality, technical specifications, and safety approvals allow easy integration into a wide range of high voltage applications in analytical instruments and semiconductor wafer inspection equipment.
Output voltages up to 15kV
Output ripple as low as 0.001%
Stability as low as 10ppm/hr, 25ppm/8hrs
Temperature coefficient of 25ppm/°C
+24VDC input voltage
Output voltage and current regulated
0 to 100% programmable output voltage and current
Voltage and current control and monitoring
Digital communication via PMBus
Arc, short circuit and overload protections
Intuitive UI for easy configuration
Black Box reporting
UL61010 and 62368 approved
Operating temperature: 0°C to +50°C (ambient)
3 year warranty
