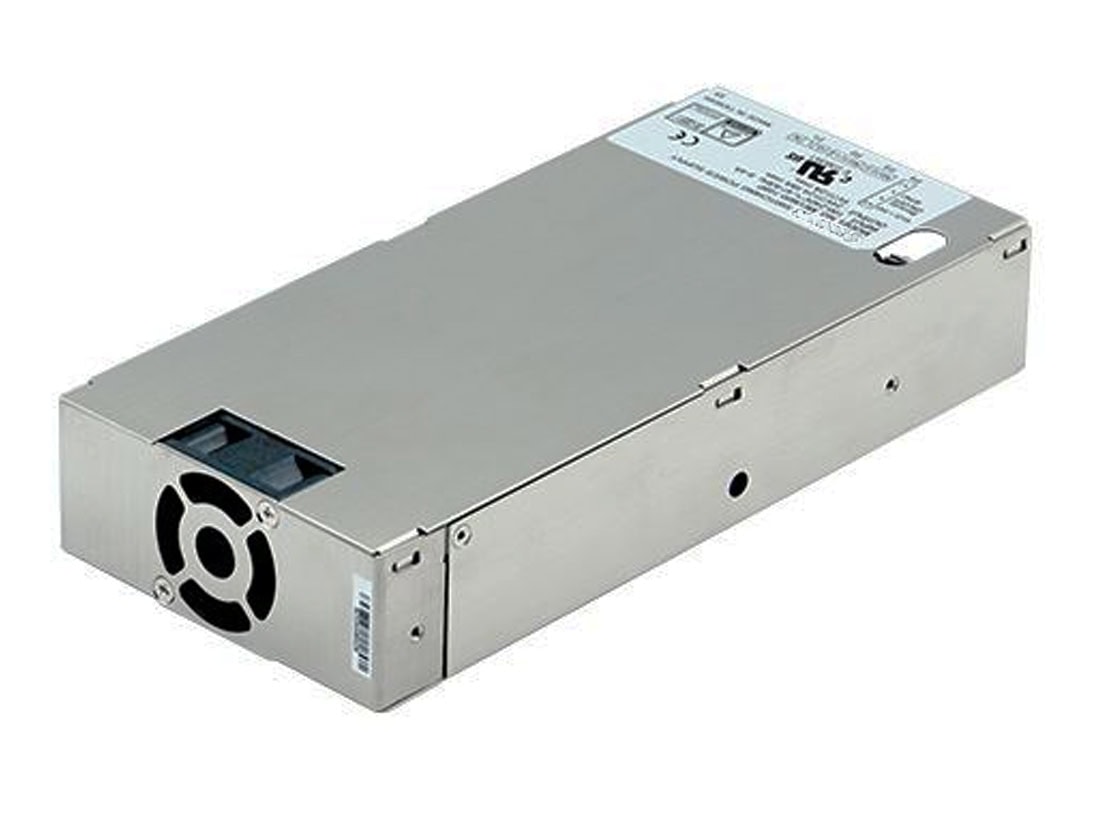

MEU600 Series
£0.00
SKU: MEU600 Series
The MEU600 series of medical grade and ITE/AV grade AC-DC power
supplies provides the compact form factor and high efficiency that the
marketplace demands. They are capable of delivering the maximum of
continuous output power and operating temperature. The series
provides a steady 600 W of regulated DC power through the full 90 to
264 VAC input range, all in a 3.94” X 8.5” X 1.57” form factor. All models
meet FCC Part-18, CISPR-11 and EN55011 class B emission Limits, IEC
60601-1:2014, IEC 62368-1:2014 and EN55032 class B are designed to
comply with UL/cUL, TUV T-mark and conformity assessment in CE
marking. All units pass burn-in test at full load condition.
Wide Operating Voltage, 90 to 264VAC, 47 to 63 Hz
Input to Output: 2MOPP
High ESD Immunity
Active Power Factor Correction
Protection: OVP, OLP, OTP, SCP
Size: 3.94”x 8.5”x 1.57”
High Altitude of 5000m
3-Year Warranty
