MHP 1000 Series
£0.00
SKU: MHP 1000 Series

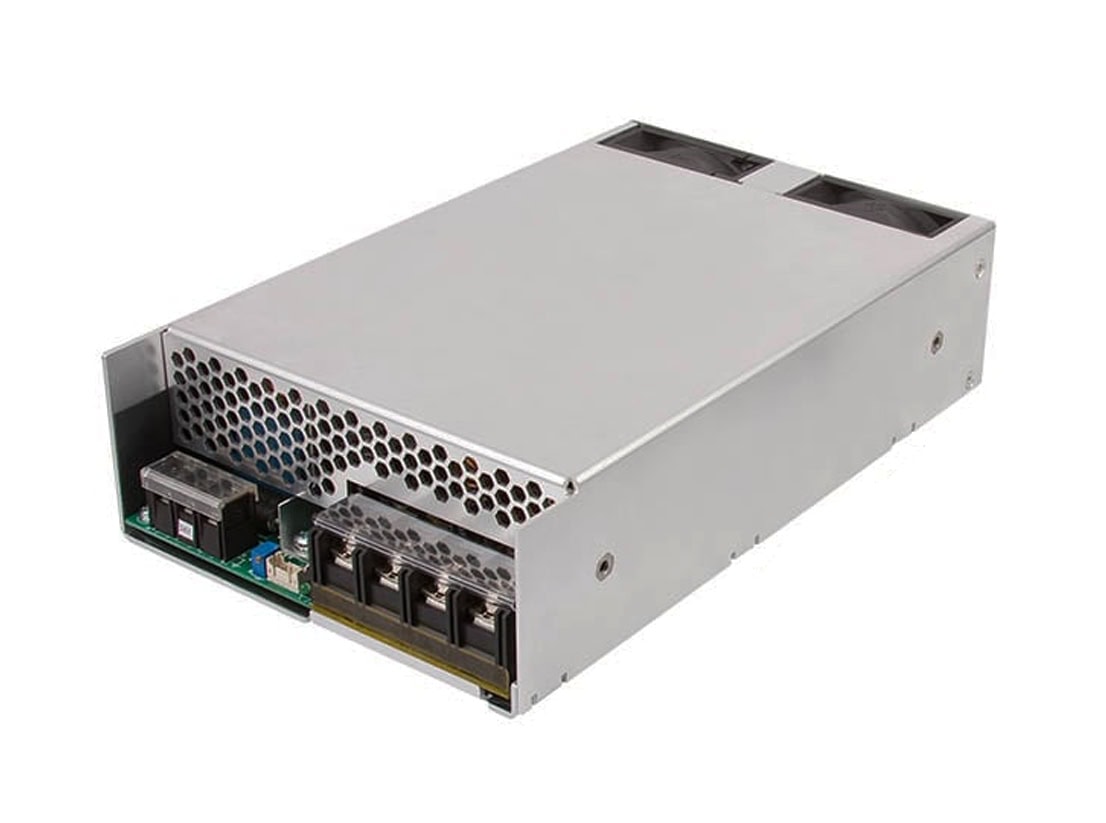

The MHP1000 AC-DC power supply provides up to 1.2kW of output power in three
mechanical packages to provide installation flexibility in a range of medical applications.
The unit comprises of a main output with voltages from 12V to 48VDC and a 5VDC standby
supply which can be utilised with the signals and control features of the unit to provide
detection of loss of AC input and remote on/off control.
Multiple units can used in parallel via the current share facility, providing higher power
solutions. Inherently low earth leakage current, and conducted EMC compliance to Class B
also simplify higher power system design.
1kW fan cooled/1.2kW highline operation
240.9 x 149.8mm footprint, 61.0mm profile
Regulated single outputs 12V to 48VDC
Input range 85 to 264VAC
Medical safety approvals
Rugged construction
Variable fan speed for noise reduction
AC OK, remote On/Off and active current share
Screw terminals
5VDC/1A standby
-20°C to +70°C operation
3 year warranty
