MPL500 Series HV AC-DC
£0.00
SKU: MPL500 Series HV AC-DC

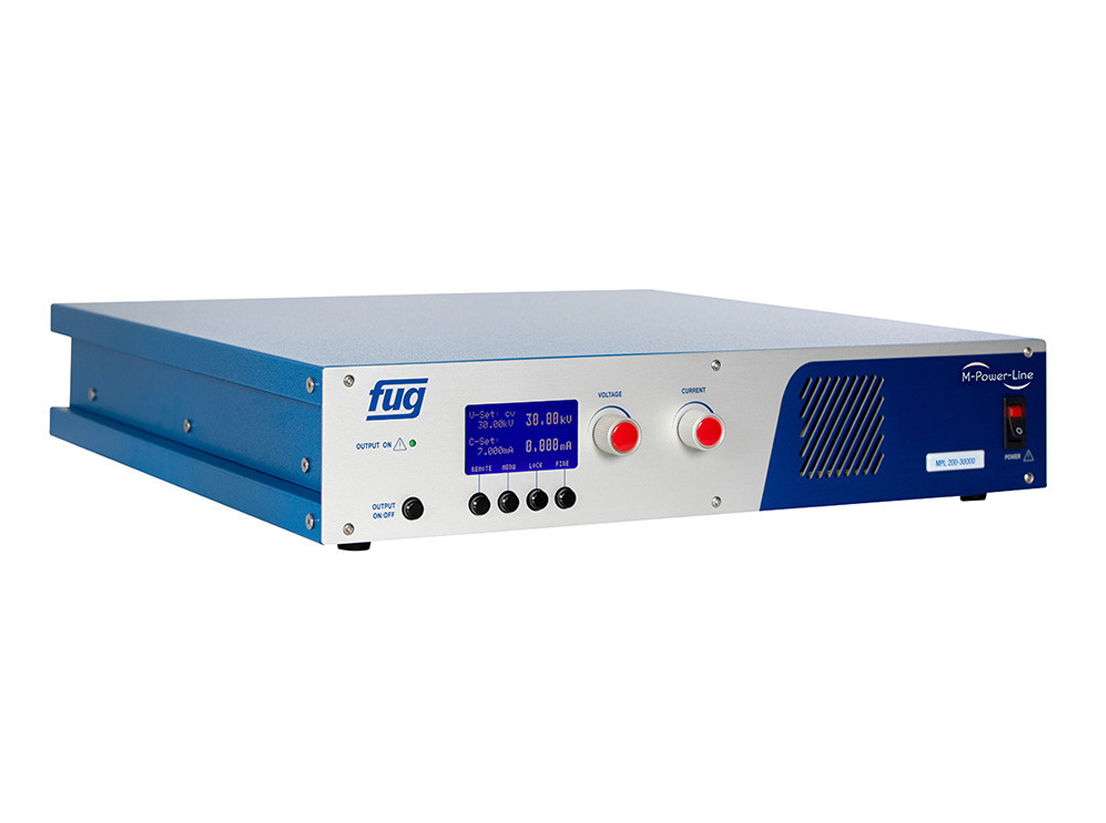

The M-Power-Line series is a competitive, 500W, highly efficient, compact DC power supply with
robust design. Combining simple operation and an easy to use multi-function display, these
power supplies are well suited for applications in industry, science and research.
M-Power-Line models feature flexible and easy to operate local controls combined with
a multifunction digital display that simultaneously shows both the output set points and
actual measured values. HV outputs can be adjusted by voltage and current encoders with
coarse and fine settings, with set point adjustment possible even with the output locked.
The local control interface also allows the user to set the IP address, displays information
about the unit, such as operation hours, MAC address and internal status.

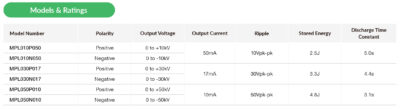

• 0-10kV, 0-30kV and 0-50kV output models
• Single phase AC input with active PFC
• 2U 19” rack mount
• Multi-function control panel with user friendly interface
• LAN and USB interfaces are standard
• High efficiency – 85% to 90%
• Low ripple ≤0.1% pk-pk
• CE marked, EN61010-1 safety compliant
• Short circuit & arc protection
• Integrated arc counter
• HV Release socket for integration of shut down circuits
• Variable fan speed for quiet operation
• Operating temperature: 0 to +40°C
• 2 year warranty
