PBR500 Series
£0.00
SKU: PBR500 Series

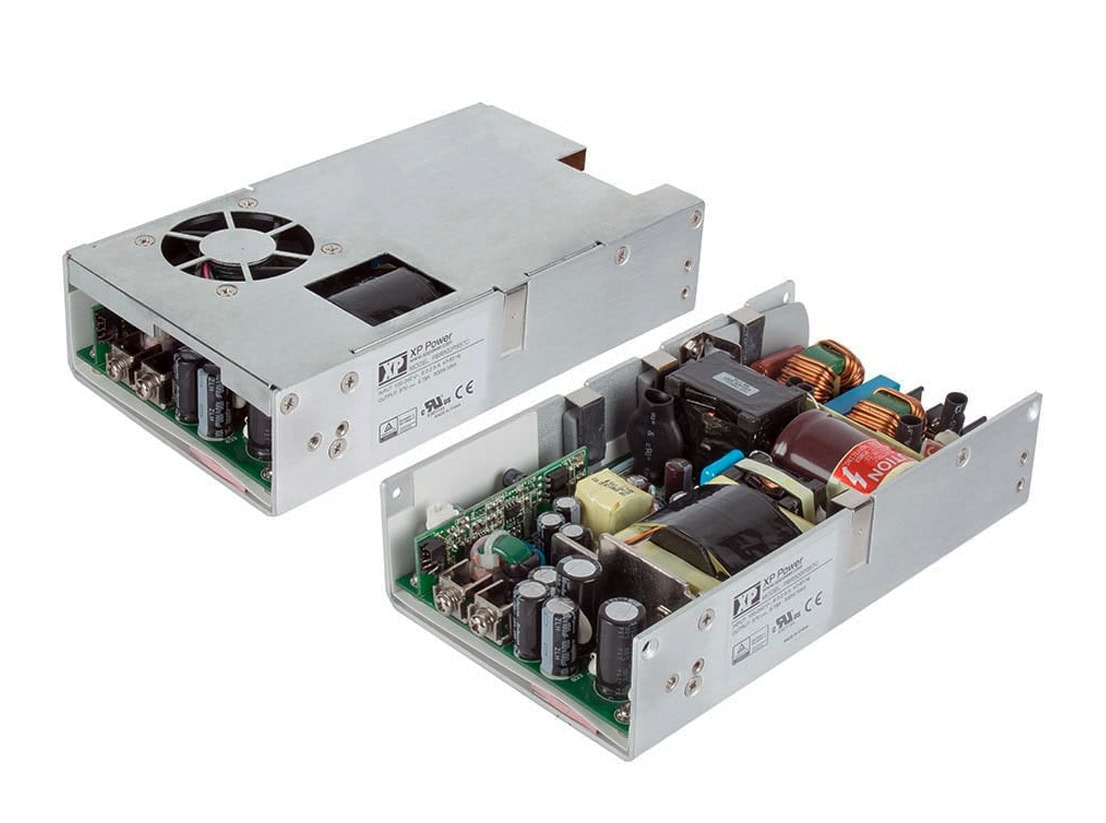

The PBR500 series of AC-DC switching power supplies, in a package of just 4 x 7 x 1.7
inches, deliver 450-500 watts of continuous power with forced air cooling or 350-400 watts
with convection cooling. The units are constructed on a U-Channel for mechanical support
and heat sinking. A cover and fan assembly can be added during manufacturing. They are
designed for both ITE/Industrial and medical applications including those needing BF rated
insulation with an operation altitude up to 5000 meters.
• 450-500W forced cooled
• 350-400W convection cooled
• ITE and medical (BF) safety approvals
• U-channel 4” x 7” package
• 5V standby and 12V fan supply
• AC OK, inhibit and remote sense
• Class B conducted and radiated emissions
• 3 year warranty
