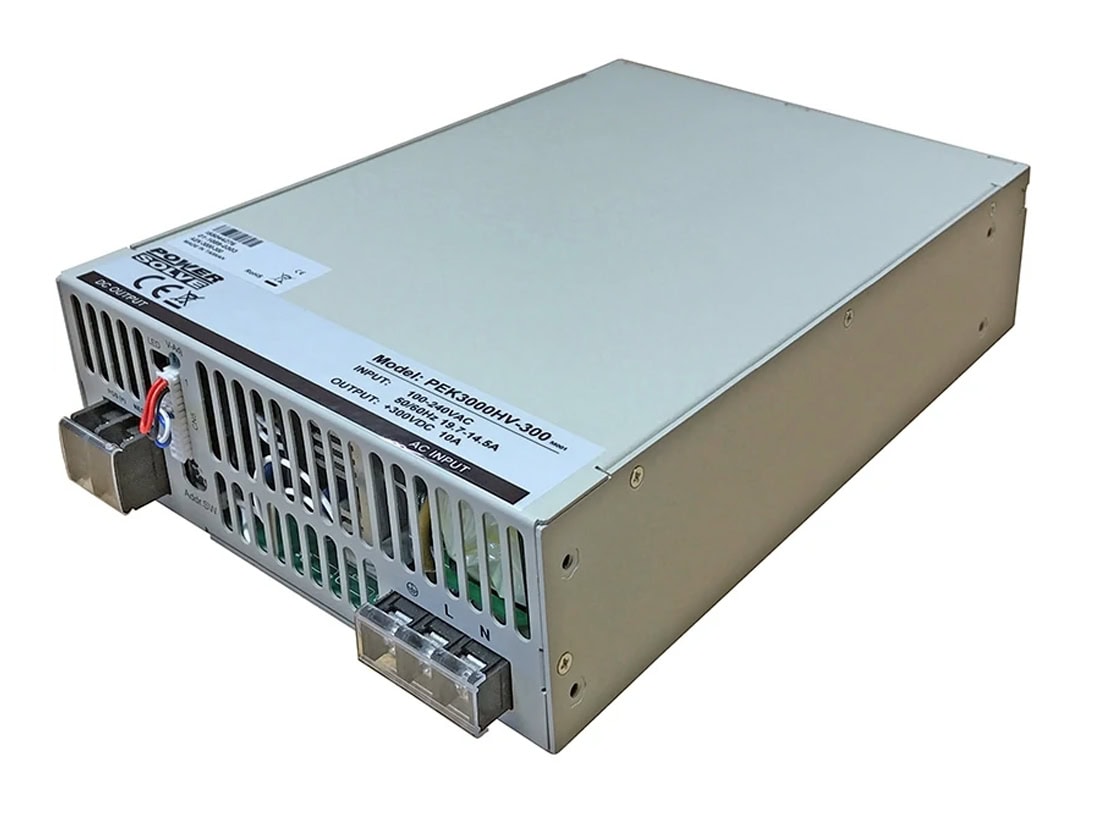

PEK3000 HV Series (ORing Diode)
£0.00
SKU: PEK3000 HV Series (ORing Diode)
Single high voltage outputs 150V, 200V, 250V, 300V or 400V DC, Voltage & Current programmable, 3000 Watts,
Built-in Oring Diode, I²C and RS485 communication interface
Features:
Universal AC input / Full range
Programmable output Voltage / Current (0% ~ 105%)
Built-in active PFC Function & Oring Diode
Built-in I²C and RS485 communication interface
Constant current limit
Forced current sharing at parallel operation (Refer to pg. 5 for connection diagram) Selectable +5V / 0.5A or +9V / 0.3A auxiliary output
Global control via RS232 / RS485 protocol
Remote setting multiple PSU via RS485 & I²C
Power OK signal & Remote ON / OFF function
Protection: OVP, OLP, OTP, SCP, Fan failure
