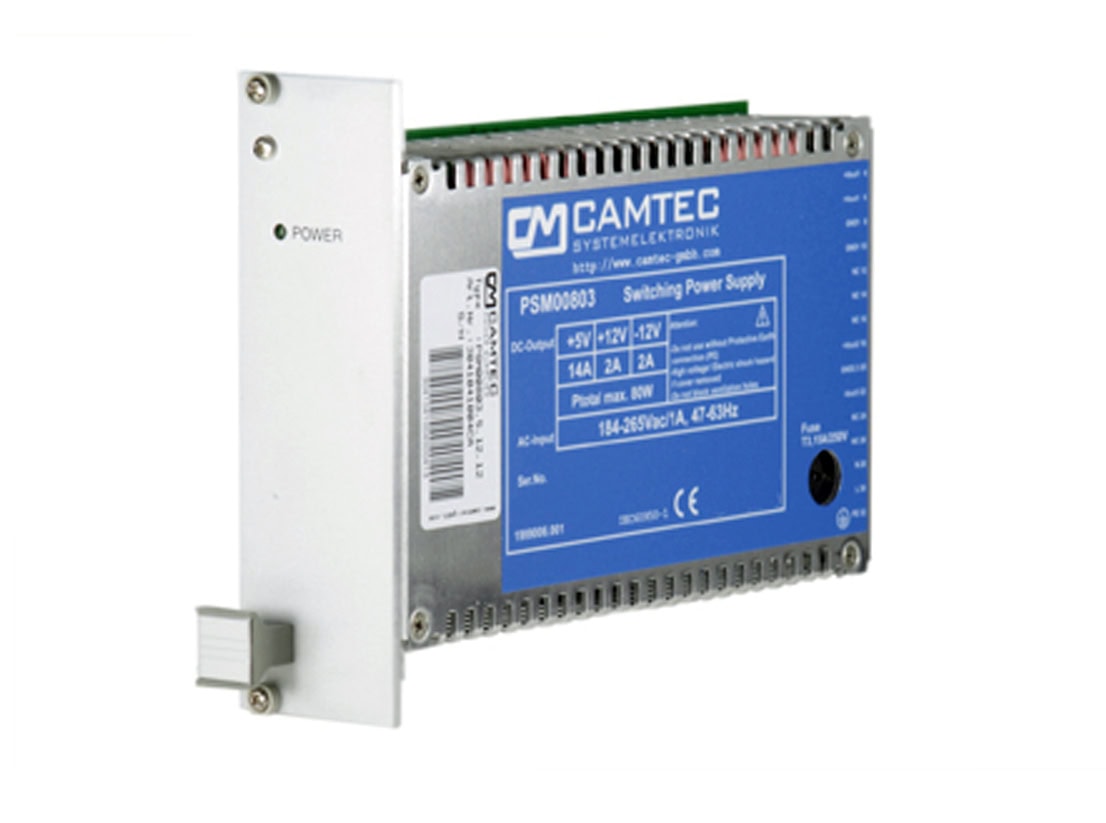

PSM0083 Series
£0.00
SKU: PSM0083 Series
The PSM series is a high precision switch mode power supply for an upscale demand. It is engineered and manufactured by CAMTEC in Germany. The power supply provides a low ripple-noise, a precise load-regulation, a static current limiting. High-end long-life capacitors guarantee an extended hold-up-time and an extraordinary lifetime. The internal control circuit manages illegal operating conditions to prevent your system from damages. The PSM series features a high input transient resistance with suppressor diodes, X2-capacitors and varistors and has an extended burst immunity of 8kV. All inputs, outputs and feature connections are galvanic isolated. The design rules set value on extended interference immunity and safety. The unit is designed in accordance with the EN61010-1, EN61010-2-201, EN62368-1, EN60950-1 and the EMC-compatibility with EN55032.
• 19-Inch plug-in module
• AC Power fail signal
• Soft start & auto-recovery
• Electronic inrush current limiter 15Apeak
• Overload and short circuit protection
• Zero load compatible
• Precise dynamic response to load change
• Designed for long life under full stress
• Strong input filters
• Hold up time 100ms
• High reliability, shock & vibration proof
• EMC meets CE norm class B
