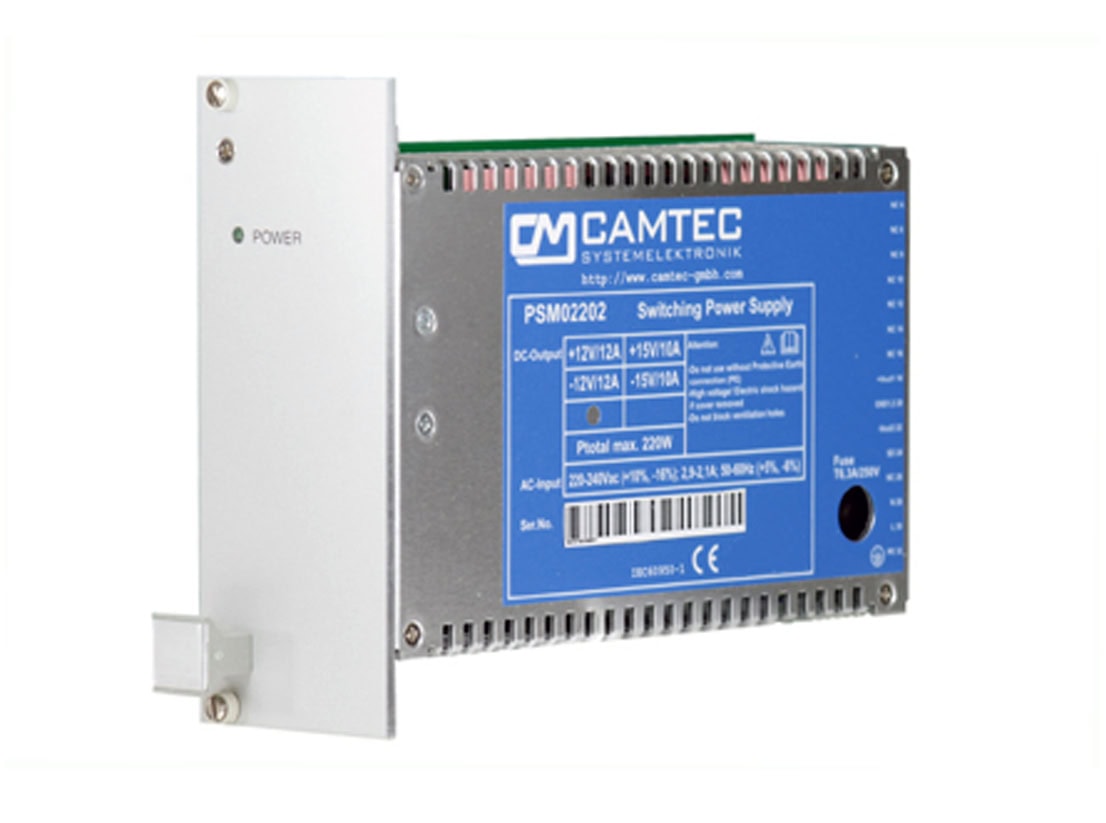

PSM02202 Series
£0.00
SKU: PSM02202 Series
The 3U PSM Series is a high reliability AC power supply for universal use in electronics, automation systems, railway use and machinery building. Its compact design applies to low space applications. The regulated dc-voltage with ripple/noise of 15mVpp and a good efficiency of 91% is economic and is in accordance to EuP 2002/32/EC. We use high-end ultra long life capacitors as a standard. The PSM power boost design starts critical loads at any time. The PSM internal function management controls illegal operating condition and prevents system break downs. For remote monitoring you can use the optional available galvanic insulated relay message contact. With the PSM series we used to emphasize on safety and interference resistance. The AC input verifies transient peaks up to 8000V (2.5KHz). The design is in accordance with EN60950 and complies with EN55022 class B.
• VME pin compatible
• 3U 19” Norm enclosed for 19” subracks
• Aluminium housing
• 91% efficiency typ.
• 0°C...+70°C full output power
• Free air convection
• Galvanic insulated
• Continuous short circuit protected
• Overload & low voltage protected
• Soft start & auto-recovery
• Hold up time >50ms
• Minimum load = 0A
• EMI/EMS EN61000-6-2/3, EN55022 class B
• cUL60950/16950 IEC(EN)60950-1
• H15M DIN41612 connector
• 24 hours burn in test
• High reliability, shock & vibration resistant
