SHP1000 Series
£0.00
SKU: SHP1000 Series

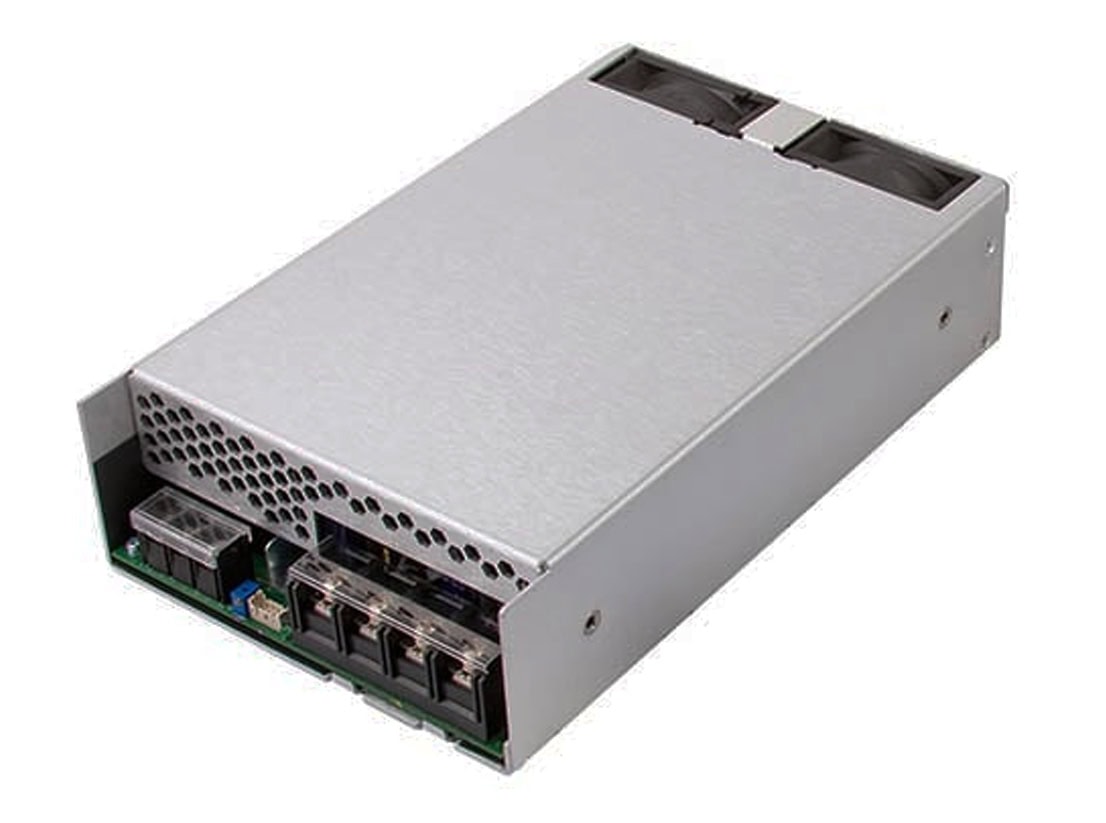

The SHP1000 AC-DC power supply provides up to 1200W of output power in a compact
rugged mechanical package, suitable for a range of applications.
The unit comprises of a main output with voltages from 12-48VDC and a 5VDC standby
supply which can be utilised with the signals and control features of the unit to provide
detection of loss of AC input and remote on/off control.
Multiple units can be used in parallel via the current share facility, providing higher power
solutions. Inherently low earth leakage current, and conducted EMC compliance to Class B
also simplify higher power system design.
• Output voltages 12 to 48VDC
• Rugged industrial construction
• End fan, top fan and U channel mechanical options
• IEC62368 and SEMI F47 compliant
• Operating temperature range from -40°C to +70°C
• Peripheral 12VDC fan supply and 5V standby
• AC OK, remote On/Off and active current share
• Load dependent variable fan speed
• Overcurrent, overvoltage and overtemperature protection
• 3 year warranty
