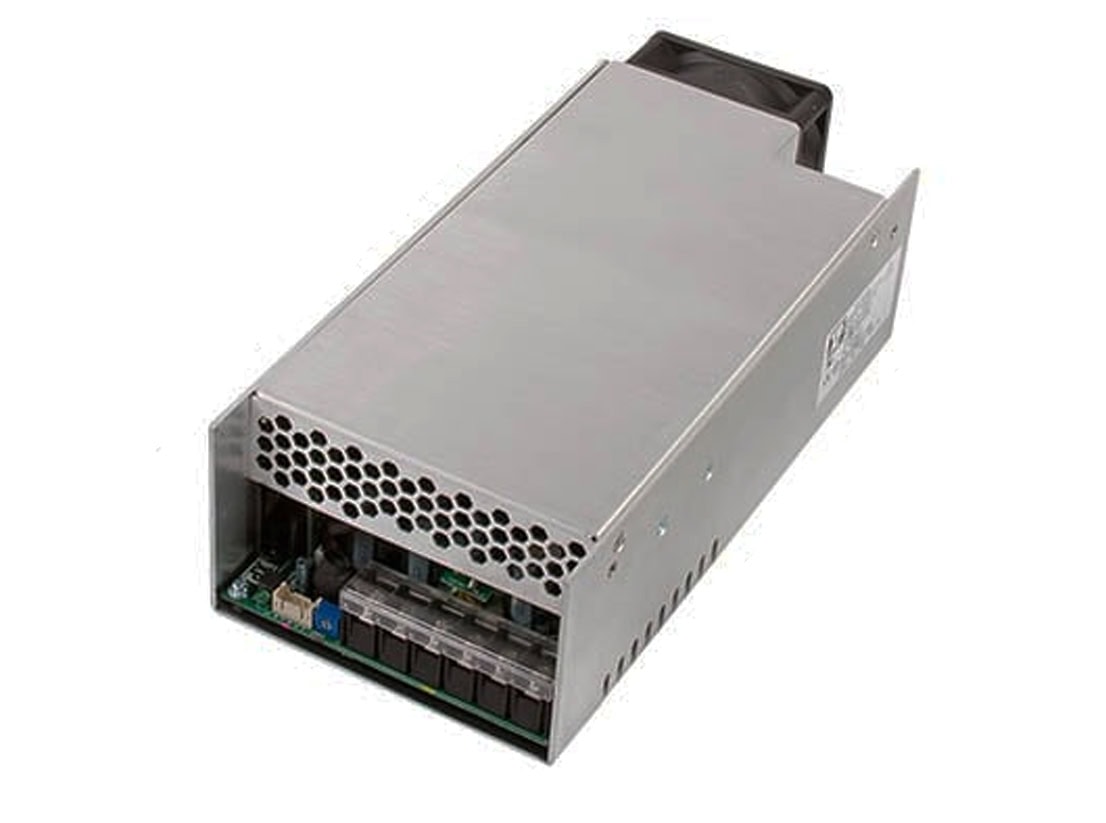

SHP650 Series
£0.00
SKU: SHP650 Series
The SHP650 AC-DC power supply provides up to 650W of output power in three mechanical
packages to provide installation flexibility in a range of semiconductor, industrial and
analytical instrumentation applications.
Packaged in a compact 8” x 4” x 2.5” and carrying IEC62368 family safety approvals, the
SHP650 has a main output with voltages from 12-48VDC and two peripheral outputs
providing a 12VDC fan supply and a 5VDC standby supply which can be utilized with the
signals and control features of the unit to provide AC Input loss detection and remote on/off
control.
Multiple units can used in parallel via the current share facility, providing higher power
solutions. Inherently low earth leakage current and conducted EMC compliance to Class B
simplify higher power system design.
• Output voltages 12 to 48VDC
• Rugged industrial construction
• End fan, top fan and U channel mechanical options
• IEC60950 and SEMI F47 compliant
• Operating temperature range from -40°C to +70°C
• Peripheral 12VDC fan supply and 5V standby
• AC OK, remote On/Off and active current share
• Load dependent variable fan speed
• Overcurrent, overvoltage and overtemperature protection
• 3 year warranty
