TBL Series
£0.00
SKU: TBL Series
The TBL series is a new range of small DIN-rail mount power supplies which have been
designed particularly with building- and factory automation applications in mind. The
ultra-compact low profile cases fit in the standardized wall mounted control panels
used in the building automation industry. The power supplies can be operated at full
load across an ambient temperature range of –25°C to +60°C without need of additional
cooling. Universal input voltage range and full compliance with all important
safety and EMC standards qualifies the TBL series power supplies for worldwide markets.
For commercial and residential applications requesting safety class ll the models
up to 90 Watt are approved to UL 1310.
Low profile case, module depth only 55mm
Fits into flat control panels used in building automation
Safety class ll product
UL 1310 class II, NEC class 2 compliance (models up to 90 W) UL 508 listed

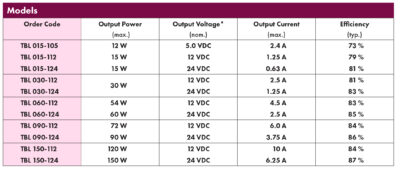

Power ranges from 12 to 150 W
Universal input range 85 to 264 VAC (auto range for 150 Watt models)
Operating temperature range: –25°C to +70°C max. Adjustable output voltage
Short circuit and overload protection
DC–OK indicator
Easy snap-on mounting on DIN-rail or
w/ wall mounting bracket (included)
3-year product warranty
