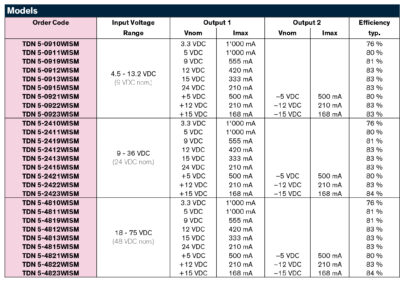

TDN 5WISM Series
£0.00
SKU: TDN 5WISM-1
The TDN 5WISM Series redefines the power density of high performance DC/DC converters. The cubical package of only 1.23 cm³ encloses a sophisticated circuit which provides 5 Watt output power without any compromise regarding reliability and functionality. They operate up to 50°C environment temperature at full load or up to 70°C with a 50% load de-rating. With 1'600 VDC I/O-isolation voltage, external On/Off and short current protection, they cover a wide range of application when space is limited. The input of the converters is designed for a wide voltage range (4:1) and minimum load is not required.
The functional I/O-isolation system is designed to meet IEC/EN/UL 62368-1 (not certified) with a test voltage (60 s) of 1'600 VDC.
• Ultra compact SMD package 13.2 x 9.1 x 10.2 mm
• I/O-isolation 1'600 VDC
• Fully regulated outputs
• Operating temperature range - 40°C to +75°C
• Short circuit protection
• Remote On/Off
• Designed to meet IEC/EN/UL 62368-1 (not certified)
• 3-year product warranty
