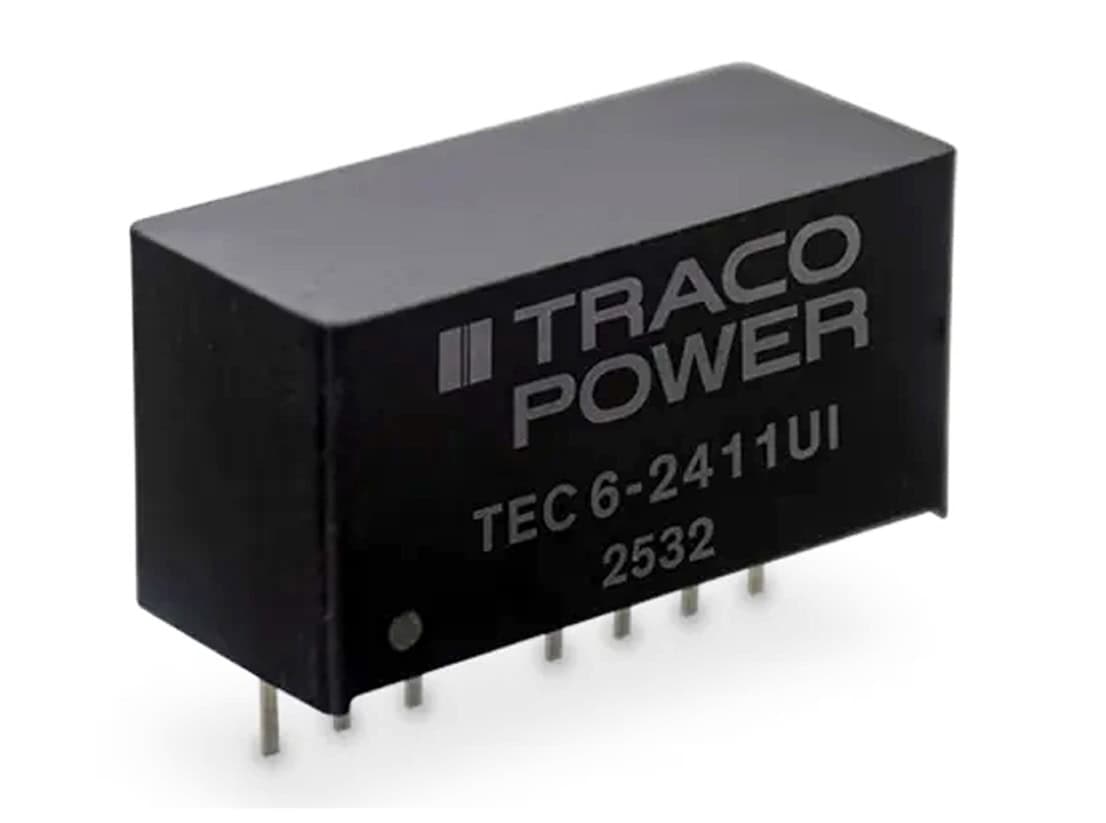

TEC 6UI Series
£0.00
SKU: TEC 6UI Series
The TEC 6UI series comprises isolated DC/DC converters featuring an ultra-wide input range. These next-generation converters are engineered to seamlessly replace and serve as an alternative to existing 2:1 and 4:1 input converter series—delivering uncompromising performance and cost-efficiency. With an input voltage range of 9 to 75 VDC, the TEC 3UI supports a broad spectrum of standard bus voltages, reducing the need for multiple model variants within a single application. Each model includes built-in protections such as short circuit protection, over current limitation, undervoltage lockout, and remote-control functionality. The converters are certified for an operating temperature range of -40°C to +80°C in accordance with IEC/EN/UL 62368-1 and are capable of functioning at altitudes up to 5000 meters. Housed in a compact SIP8 plastic case, the TEC 6UI series is well-suited for space-constrained applications. Available in both single and dual output configurations, these converters are ideal for a wide range of industrial applications.
• Compact SIP8 plastic case
• Ultra-wide input range: 9 VDC to 75 VDC
• Certification according to IEC/EN/UL 62368-1
• Approved operating temperature from - 40°C to +80°C
• I/O isolation 1600 VDC
• Operating up to 5000m altitude
• Short circuit protection and over current limitation
• Under voltage lockout
• Remote ON/OFF
• 3-year product warranty
