TEL 15N Series
£0.00
SKU: TEL 15N Series
The TEL 15N is a series of isolated 15 Watt converters which come in an ultra
compact DIP-16 metal package. The design purpose of this series was to miniaturized
low power DC/DC converters to the maximum without sacrificing high
efficiency. It solidifies the new standard for power density with 4.51 W/cm3
and effectively doubles the power density compared to 15 Watt converters in
DIP-24 packages. The TEL 15N offers a wide 2:1 input voltage range and features
a high efficiency of up to 87% which enables an operation temperature of
up to +55°C at full load and up to 85°C with 50% load. The converters also
have an internal input filter to comply with conducted emission standard EN
55032 class A. It's an economical solution for space critical and cost sensitive
applications in instrumentation, IT and industrial electronics.
• Ultra compact 15 Watt converter in DIP-16 metal casing
• Highest power density of 4.51 W/cm3
• Operating temperature range -40°C to +85°C

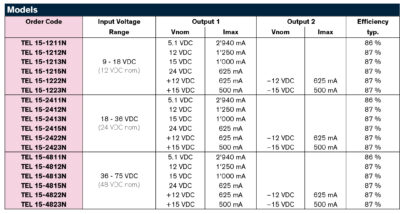

• Wide 2:1 input voltage ranges: 9-18, 18-36, 36-75 VDC
• High efficiency (up to 87%) for low thermal loss
• 6-side shielded metal case with insulated baseplate
• Built-In EN 55032 class A filter (conducted)
• Protection against short circuit
• 3-year product warranty
