TEN 40WIR Series
£0.00
SKU: TEN 40WIR

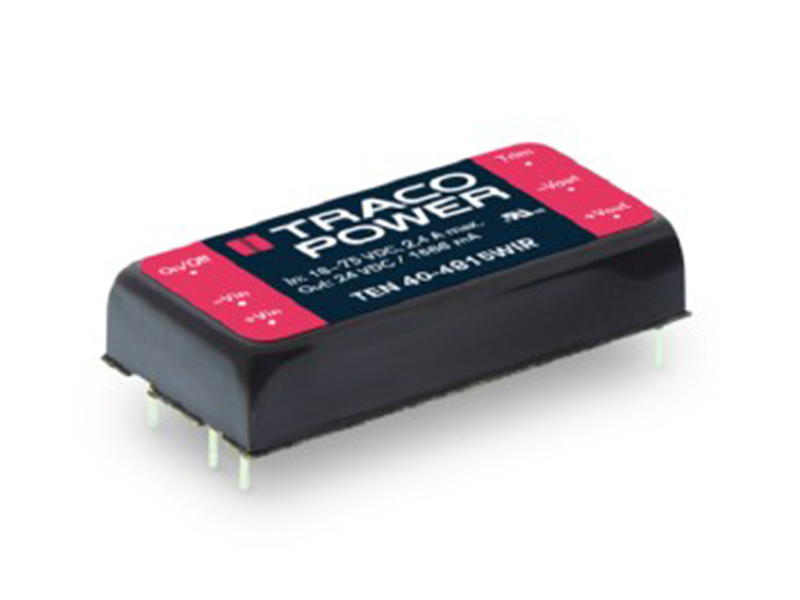

The TEN 40WIR series is a family of high performance 40 Watt DC/DC
converter modules featuring ultra wide 4:1 input voltage ranges in a 2" x 1" x
0.4" package with industry-standard footprint. Input voltages up to 160 VDC,
excellent EMC characteristics and EN 50155 approval make this product the
best choice for many demanding applications in railroad and transportation
systems. Further standard features include remote On/Off, over voltage
protection, under voltage lockout and short circuit protection. Low input current
characteristics at minimal load make these converters also the ideal solution for
battery-operated systems. Typical applications are in wireless networks,
telecom/datacom, industry control systems and measurement equipment.
• 2" x 1" x 0.4" metal package

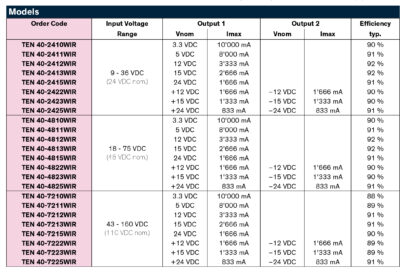

• Ultra wide 4:1 input voltage range 9–36, 18–75, 43–160 VDC
• EN 50155 approval for railway applications
• Thermal shock and vibration resistant according EN 61373
• High efficiency up to 92%
• Operating temperature range –40°C to +85°C
• Under voltage lock-out circuit
• Remote On/Off and Output voltage adjustable
• 3-year product warranty
