TEN 50 Series
£0.00
SKU: TEN 50
The TEN 50 Series is a range of isolated high performance DC/DC converter
modules. Due to the very high efficiency of up to 92% and the use of highest
reliable components these 50 W converters come with a footprint of only 1.0” x

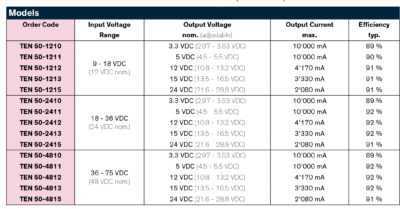

2.0”. The 12 models have a wide 2:1 input voltage range and a tight output voltage
regulation. They do not need a minimum load and a offer a high efficiency
also at low load conditions. The output voltage is adjustable by external resistor.
Remote On/Off and protection against overload and short circuit are standard
features of these converters. Typical applications are in mobile equipment,
instrumentation, distributed power architectures in communication and industrial
electronics and everywhere where space on the PCB is critical.
• Highest power density: 50 W in 1” x 2” x 0.4” package
• Excellent efficiency up to 92 %
• Operating temperature range –40°C to +85°C
• Output voltage adjustable
• Remote On/Off
• I/O isolation 1500 VDC
• 3-year product warranty
