TEN60 WIR Series
£0.00
SKU: TEN60 WIR Series
The TEN 60WIR is a ruggedized 60 Watt railway approved DC/DC converter series
with a wide 4:1 input voltage range and increased resistance against electromagnetic
interference, shock/vibration and thermal shock. The standard version
comes with a preassembled heatsink which was specifically designed for
this 2” x 1” metal package converter. Together with a high efficiency of up to
92% this gives the converter an effective operating temperature range of -40°
to +70°C without derating. The approvals according to standards EN 50155
and EN 61373 qualify them for railway and transportation systems. Additional
qualification for the fire behavior of components according to EN 45545-2 and
the safety approval according IEC/EN 62368-1, UL62368-1 support a potential
compliance test of the application. All models offer an I/O-isolation voltage
of 3’000 VDC and feature an active under voltage lockout function, remote on/-
off and adjustable outputs to ensure that these converters fit in any ruggedized
application setup.
• Compact 2”x1” package (without heatsink)

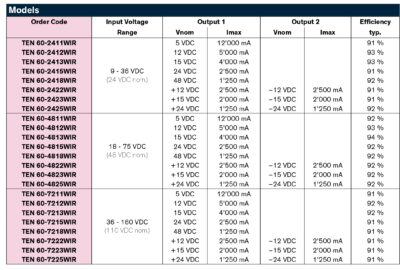

• Wide 4:1 input voltage range: 9–36, 18–75, 36–160 VDC
• EN 50155 and EN 61373 approval for railway applications
• Qualification for fire behavior according to EN 45545-2
• Operating temperature range –40°C to +85°C
• I/O-isolation 3‘000 VDC
• High efficiency up to 92%
• Under voltage lock out circuit
• Adjustable output voltage and Remote On/Off
• 3-year product warranty
