TEP 200WIRCM Series
£0.00
SKU: TEP 200WIRCM Series
The TEP 200WIRCM Series is a family of isolated high performance DC/DC converter
modules with ultra-wide 4:1 input voltage ranges. They come in chassis
mount version with screw terminal block. A very high efficiency allows full power
operation at 25°C with only 100 LFM air flow cooling and operation at 60°C
with only 40% power derating. The very wide input voltage range makes these
converters interesting solution for battery operated systems. Typical applications
are in telecom/datacom, industry control and railway systems for onboard
power distribution.
• Chassis mount with screw terminal block
• Ultra wide 4:1 input voltage ranges 9–36, 18–75, 43–160 VDC
• EN 50155 approval for railway applications
• Very high efficiency up to 91%
• No minimum load
• Soft start
• Under voltage lock-out circuit
• Adjustable output voltage +10 / -20%
• Sense line

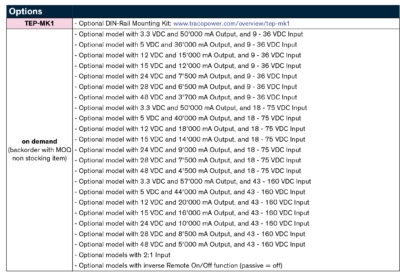

• Optional DIN-rail mounting kit
• 3-year product warranty
