TEP 200WIRCMF Series
£0.00
SKU: TEP 200WIRCMF Series-1
The TEP 200WIRCMF Series is a family of isolated high performance DC/DC
converter modules with ultra-wide 4:1 input voltage ranges. They come in
chassis mount version with screw terminal block and with integrated EMI input
filter to meet EN 55032 class A. A very high efficiency allows full power
operation at 25°C with only 100 LFM air flow cooling and operation at 60°C
with only 40% power derating. The very wide input voltage range makes these
converters interesting solution for battery operated systems. Typical
applications are in telecom/datacom, industry control and railway systems for
onboard power distribution.
• Chassis mount with screw terminal block
• Including EMI filter to meet EN 55032, class A

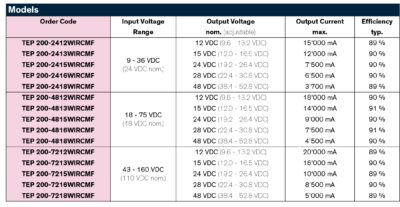

• Ultra wide 4:1 input voltage ranges 9–36, 18–75, 43–160 VDC
• EN 50155 approval for railway applications
• Very high efficiency up to 91%
• No minimum load
• Soft start
• Under voltage lock-out circuit
• Adjustable output voltage +10 / -20%
• Sense line
• 3-year product warranty
